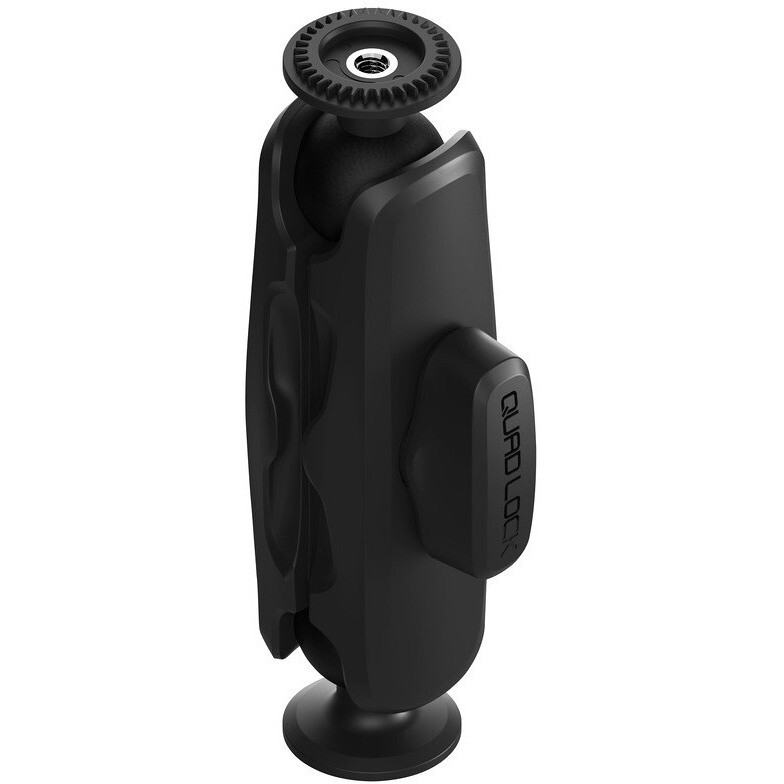

360 Quad Lock QLP-360-DPM Dual Pivot Medium Arm
Get optimal leverage and a perfect view with the double pivot arm.
Choose between a small (51mm / 2") or medium (75mm / 3") dual-pivot arm to suit your needs. Both arms are compatible with all Quad Lock 360 heads and bases.
OPTIMAL VIEWING
The dual-pivot arms can rotate 360 degrees x 180 degrees. The two ball heads at the ends also offer 180- and 360-degree movement for more angle options.
EASY ADJUSTMENT
The double pivot arm offers two options for easy adjustment:
Hex screw for anti-theft protection
Knurled screw for easy adjustment even on the move
PRELOAD VOLTAGE
Both adjustment options work with our preload system, so the arm doesn't come apart when adjusting the angle. If necessary, the arm can still be easily detached from the ball connection at the base.
Please note: Dual pivot arms are not designed to be compatible with RAM mounting systems; please see the 1" ball adapter for a compatible solution.
Technical specifications:
- Arms made of durable nylon reinforced with fiberglass.
- Designed with preload for easy adjustment
- Both sides of the dual-pivot arms feature grooves to allow for neat cable management.

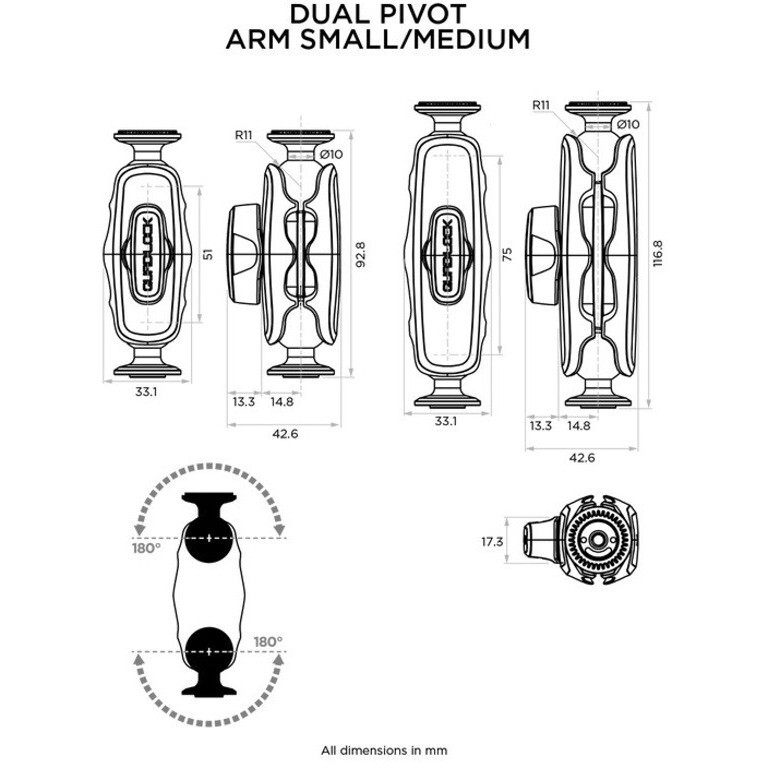

- Small arm: 51 mm (2") from pivot to pivot
- Medium arm: 75mm (3") pin to pin
- 22mm (7/8") Balls
Packaging:
- 1 x Double Pivot Arm (51mm or 75mm) (2" or 3")
- 1 x M6 x 14mm black flat head hex screw
- 1 x M6 x 14mm knurled screw (to replace the hex screw)
- 1 x M5 x 35mm hex countersunk screw
- 1 x 3mm hex key
