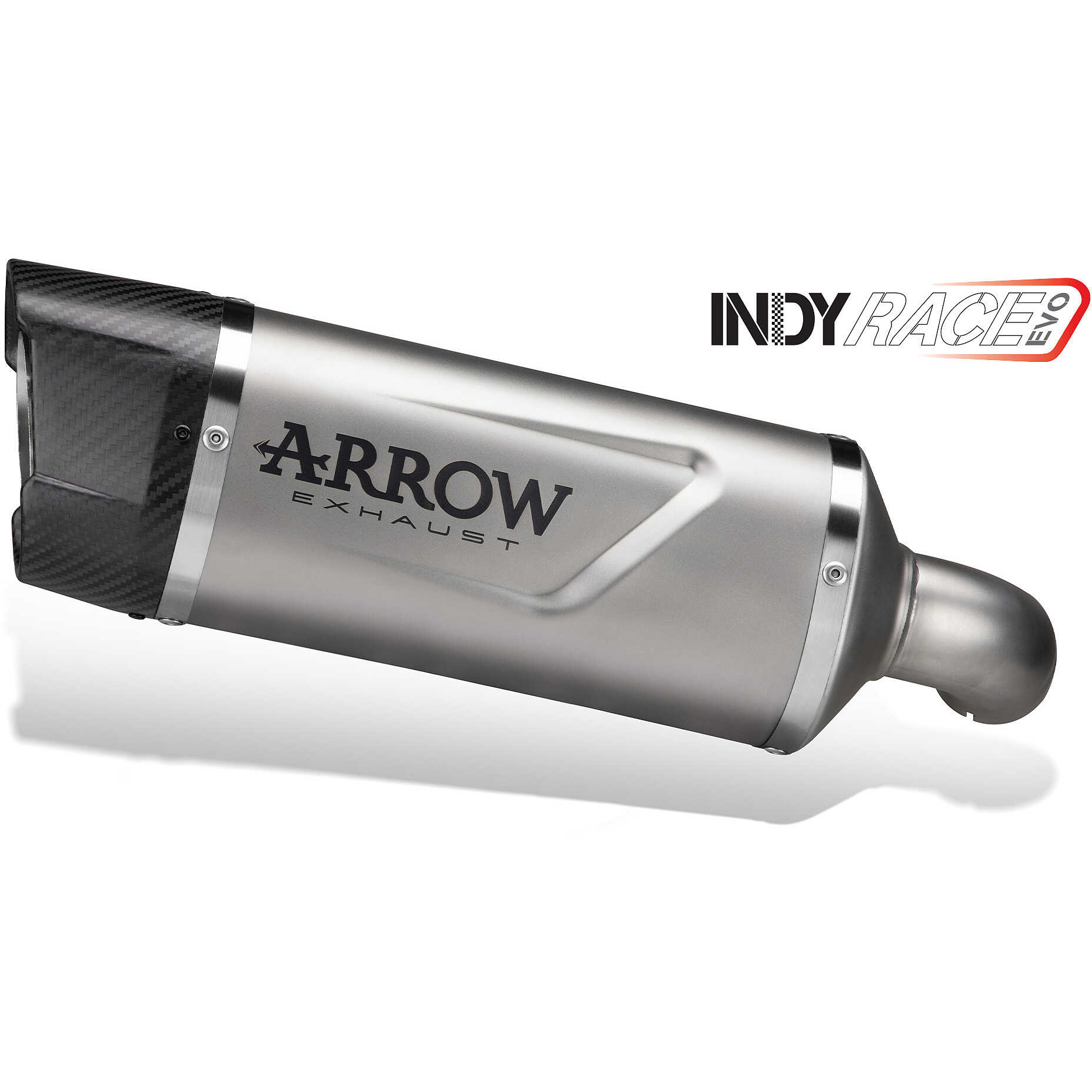

Arrow Indy Race EVO aluminum exhaust with carby end cap for Honda CB 750 Hornet (23-24)

Arrow Indy Race EVO aluminum exhaust with carby end cap For

Honda

• CB 750 Hornet (2023 - 2024)

Technical Data Sheet:

• Body material: aluminum
• Rear pad material: carbon
• Silencer internal material: stainless steel
• Fitting material: stainless steel
• Frame mounting type: welded mount
• Body length (mm): 250.00
• Connection diameter (mm): 49.00
• Outlet diameter (mm): 33,00
• CO Probe: No
• Lambda probe: No
• dbKiller Presence: Yes
• Weight (Kg): 2.3

WARNINGS Please read the technical information note available in the “Documents” section

ECE approval: Yes (approval relating to noise and power control)

N.B: Can be combined with a specific Arrow Collector Kit

• 71780MI - EC approval: No (Racing Version)

ATTENTION : Terminal also compatible with original collectors

NB: Compliance with both regulations is guaranteed only if the original catalytic system is maintained, or an Arrow silencer and catalytic system approved according to the applicable regulations are installed.

Complies with CARB regulations - California Air Resources Board ( - www.arb.ca.gov) The product is considered a “replacement part” for the purposes of CARB regulations only if the original catalytic converter(s) is not modified or removed and if no modifications are made to the control unit and any exhaust sensors. No Executive Order has been requested or obtained by Arrow or any of its subsidiaries or authorized representatives.

ATTENTION For correct assembly, we recommend going to an authorized workshop or a qualified mechanic.

IF YOU HAVE DOUBTS ABOUT COMPATIBILITY, CONTACT OUR CUSTOMER SERVICE FOR MORE INFORMATION
