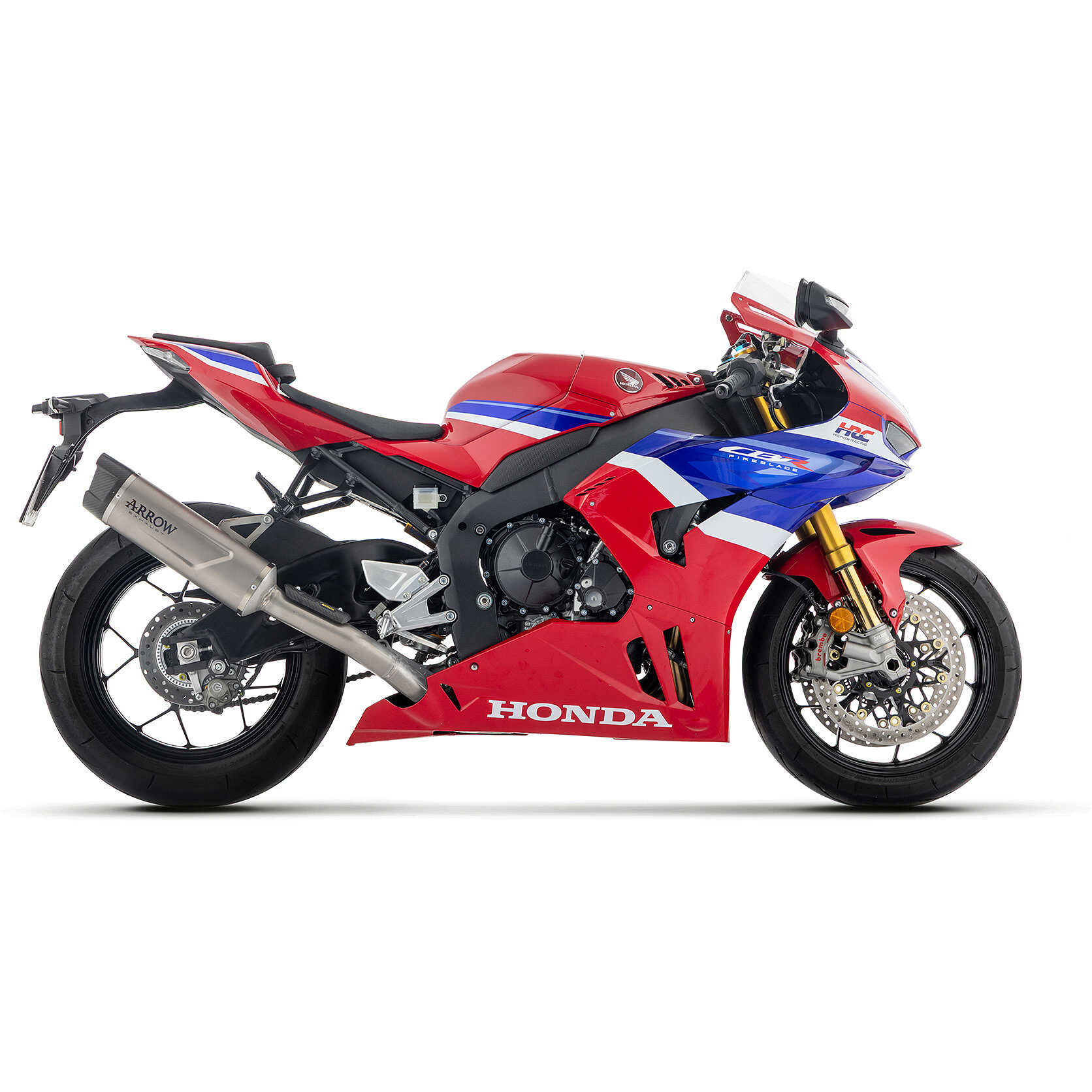

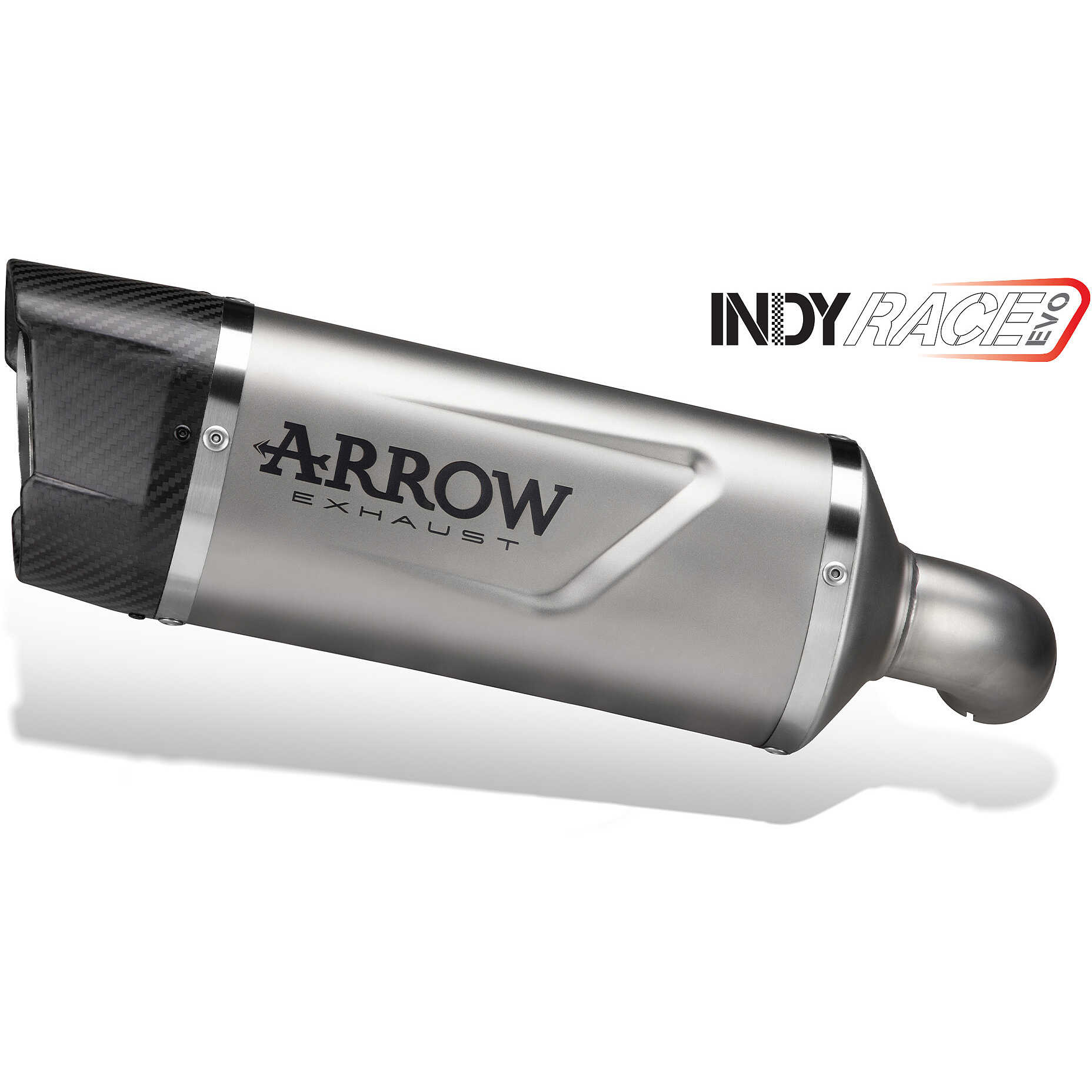

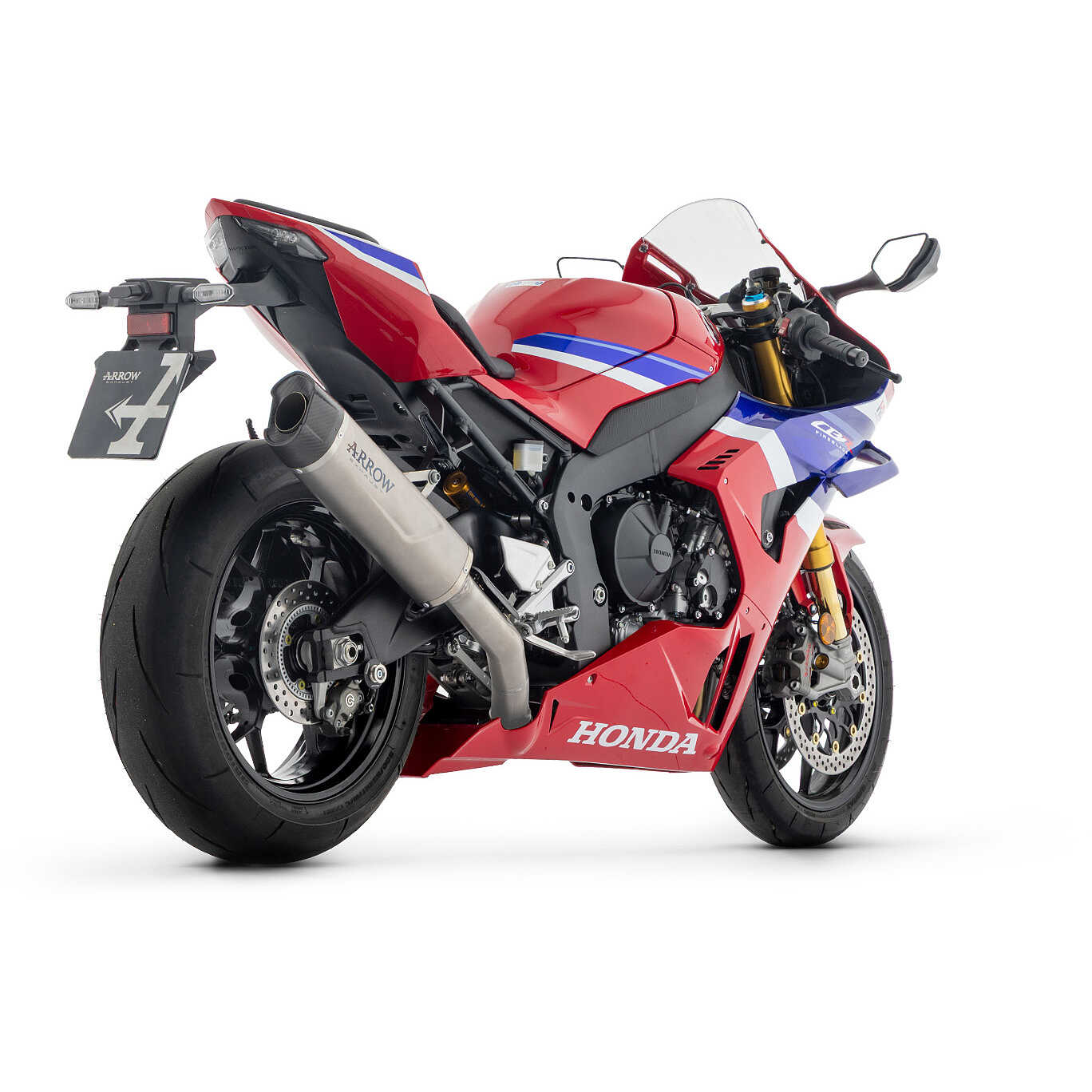

Arrow Indy Race EVO titanium exhaust with carby end cap for Honda CBR 1000 RR-R (24-25)

Arrow Indy Race EVO titanium exhaust with carby end cap For

Honda

• CBR 1000 RR-R (2024 -2025)

Technical Data Sheet:

• Body material: titanium
• Back case material:carbon
• Silencer internal material: stainless steel
• Frame mounting type: welded mount
• Collector material: stainless steel
• Body length (mm): 350.00
• Graft diameter (mm): 60.00
• Outlet diameter (mm): 33.00
• CO Probe: No
• Lambda probe: No
• dbKiller Presence: No
• Weight (Kg): 3.6

WARNINGS Please read the technical information note available in the “Documents” section

ECE approval: Yes(approval relating to noise and power control)

NB: Can be combined with a specific Arrow Collector Kit

71796MI - EC approval: No

ATTENTION : The terminal is compatible with the original catalyst

NB: Compliance with both regulations is guaranteed only if the original catalytic system is maintained, or an Arrow silencer and catalytic system approved according to the applicable regulations are installed.

Complies with CARB regulations - California Air Resources Board ( - www.arb.ca.The product is considered a “replacement part” for CARB purposes only if the original catalytic converter(s) are not modified or removed and if no modifications are made to the ECU and any exhaust sensors. No Executive Order has been requested or obtained by Arrow or any of its subsidiaries or authorized representatives.

ATTENTION : INSTALLING ARROW MANIFOLDS MAY CAUSE ENGINE FAILURE ERROR MESSAGE

ATTENTION: When installing one of the Arrow mufflers it is necessary to deactivate the exhaust valve control.

ATTENTION For correct assembly, we recommend going to an authorized workshop or a qualified mechanic.

IF YOU HAVE DOUBTS ABOUT COMPATIBILITY, CONTACT OUR CUSTOMER SERVICE FOR MORE INFORMATION
