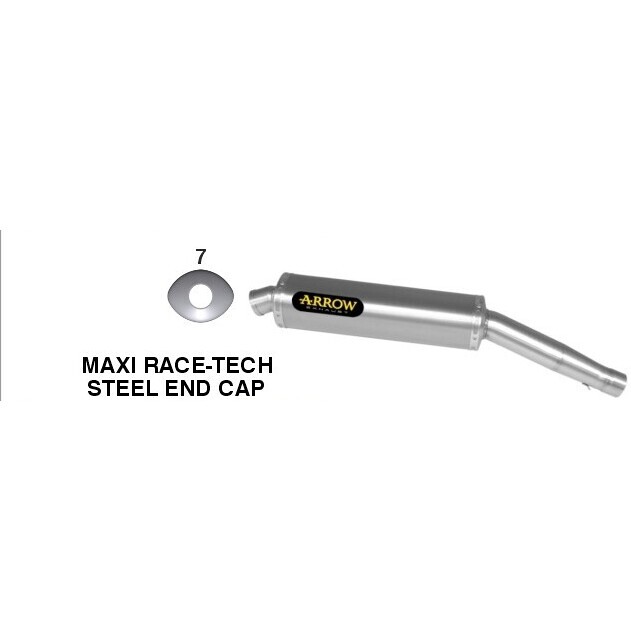

Arrow Maxi Race-Tech Approved Titanium Exhaust for Honda CBR 1000 RR (04-07)

Arrow Maxi Race-Tech Approved Titanium Exhaust Muffler For

Honda

• CBR 1000 RR (2004 - 2007)

Technical Data Sheet:

• Body material: titanium
• Case back material: stainless steel
• Silencer internal material: stainless steel
• Frame fixing type:aluminum clamp
• Collector material: stainless steel
• Body length (mm): 350.00
• Graft diameter (mm): 48.00
• Outlet diameter (mm): 58.00
• CO Probe: No
• Lambda probe: No
• dbKiller Presence: Yes
• Weight (Kg): 2.77

WARNINGS Please read the technical information note available in the “Documents” section

ECE approval: Yes (approval relating to noise and power control)

N.B: To be combined with a specific Arrow link pipe and can be combined with both original and Arrow manifolds

• 71335MI - EC approval: No (Connection)
• 71336MI - EC approval: No (Racing Collectors)

NB: The approval is valid only for the specified vehicle types and subsequent updates

Complies with CARB regulations - California Air Resources Board ( - www.arb.ca.gov) The product is considered a “replacement part” for the purposes of CARB regulations only if the original catalytic converter(s) is not modified or removed and if no modifications are made to the control unit and any exhaust sensors. No Executive Order has been requested or obtained by Arrow or any of its subsidiaries or authorized representatives.

ATTENTION For correct assembly, we recommend going to an authorized workshop or a qualified mechanic.

IF YOU HAVE DOUBTS ABOUT COMPATIBILITY, CONTACT OUR CUSTOMER SERVICE FOR MORE INFORMATION
