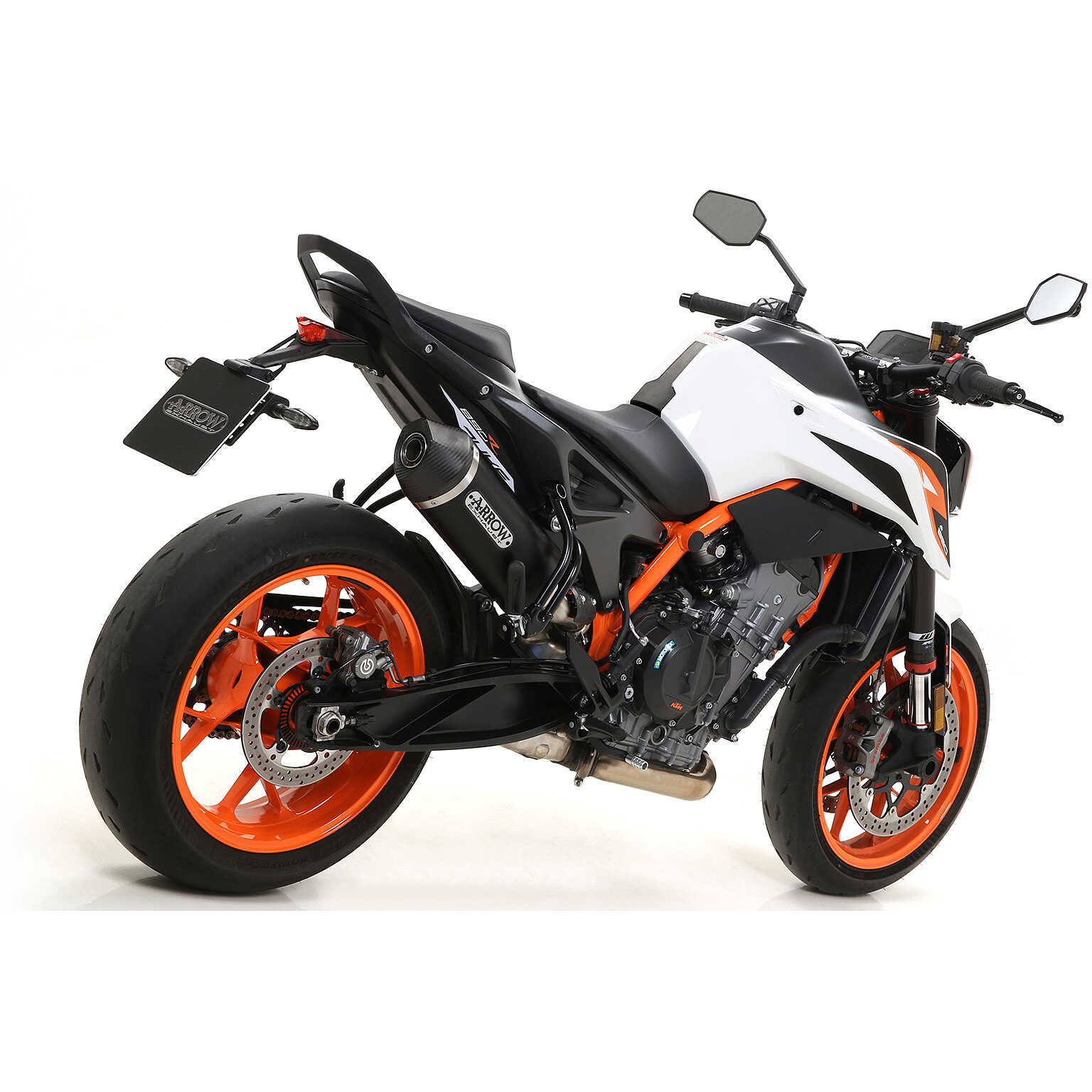

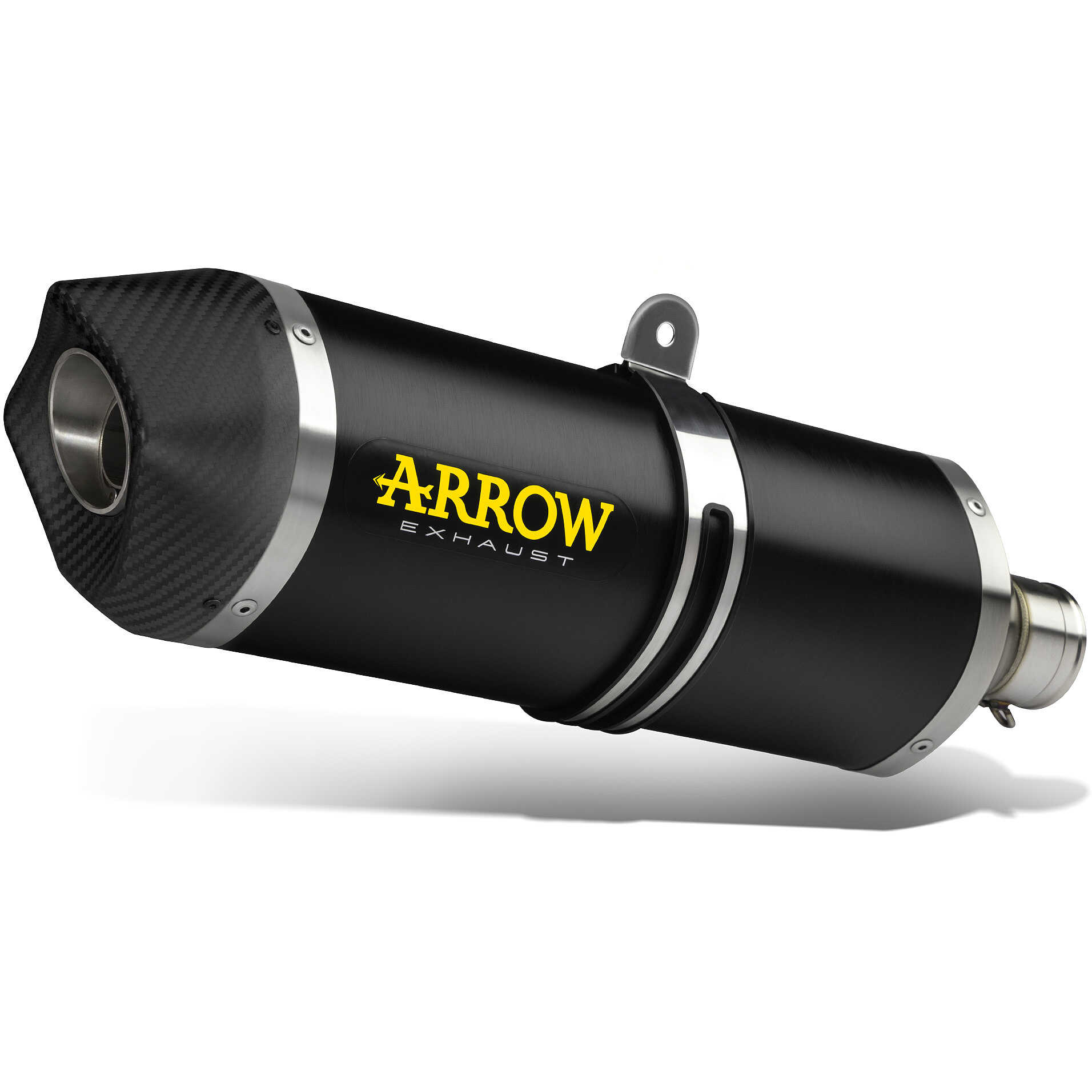

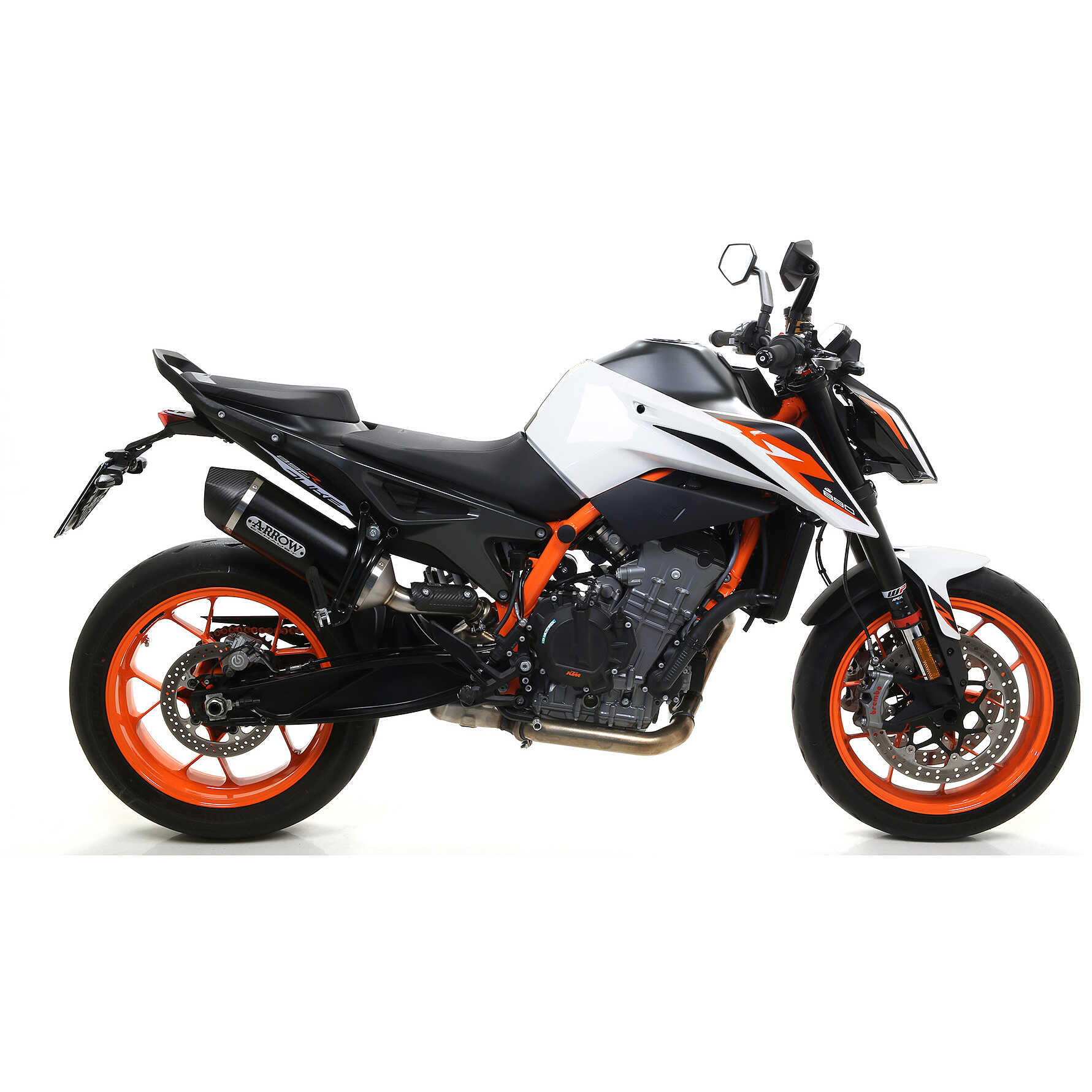

Arrow Race-Tech Dark Aluminum Exhaust with Carby End Cap for KTM 790 Duke (18-25) / 890 Duke (20-23)

Arrow Race-Tech dark aluminum exhaust with carby end cap For

KTM

• 790 Duke (2018 - 2025)
• 890 Duke (2020 - 2023)

Technical Data Sheet:

• Body material: dark aluminum
• Rear pad material: carbon
• Silencer inner material:stainless steel
• Frame mounting type: welded mount
• Fitting material: stainless steel
• Body length (mm): 300.00
• Outlet diameter (mm): 50.00
• CO Probe: No
• Lambda probe: No
• dbKiller Presence: Yes
• Weight (Kg): 2.39

WARNINGS Please read the technical information note available in the “Documents” section

ECE approval: Yes (approval relating to noise and power control)

N.B: Can be combined with a specific Arrow Central Link Pipe and Collector Kit

• 71719MI - EC approval: No
• 71702MI - EC approval: No

NB: Terminal compatible with original manifolds and fittings

NB: Compliance with both regulations is guaranteed only if the original catalytic system is maintained, or an Arrow silencer and catalytic system approved according to the applicable regulations are installed.

Complies with CARB regulations - California Air Resources Board ( - www.arb.ca.gov) The product is considered a “replacement part” for the purposes of CARB regulations only if the original catalytic converter(s) is not modified or removed and if no modifications are made to the control unit and any exhaust sensors. No Executive Order has been requested or obtained by Arrow or any of its subsidiaries or authorized representatives.

ATTENTION For correct assembly, we recommend going to an authorized workshop or a qualified mechanic.

IF YOU HAVE DOUBTS ABOUT COMPATIBILITY, CONTACT OUR CUSTOMER SERVICE FOR MORE INFORMATION
