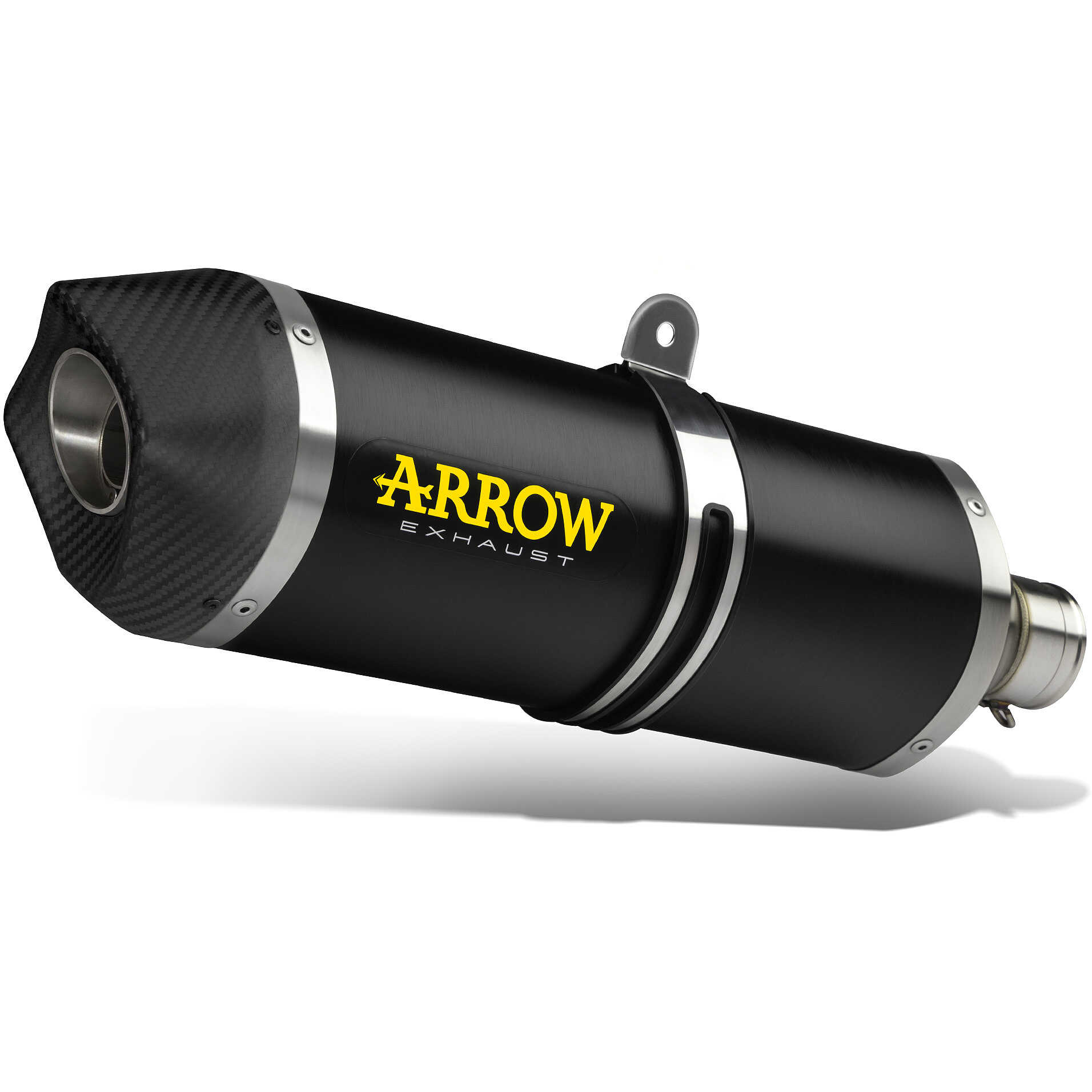

Arrow Race-Tech Dark Aluminum Exhaust with Carby End Cap for Yamaha TMAX 500 (08-11) / TMAX 530 (12-16)

The Race-Tech terminal was the first exhaust made in the rhomboid shape, which over time replaced the “old” traditional exhausts of cylindrical or elliptical shape.
The innovative rhomboid profile, with the same cross-section surface area, allows for a reduction in overall dimensions compared to traditional shapes, with a significant reduction in weight, without compromising the internal volume and therefore the ability to reduce noise without compromising performance.
The internal components of the exhaust are made of stainless steel and assembled using TIG welding. The profile of the gas passage section, the rear endcap, and the gas outlet are designed to optimize the flow of exhaust gases and minimize backpressure problems.
Race-Tech silencers are available with titanium, carbon fiber or aluminum bodies.
The aluminum body can be anodized black (Dark version) or white (White version), while the rear endcap is available in stainless steel or carbon fiber. All Race-Tech mufflers are approved.

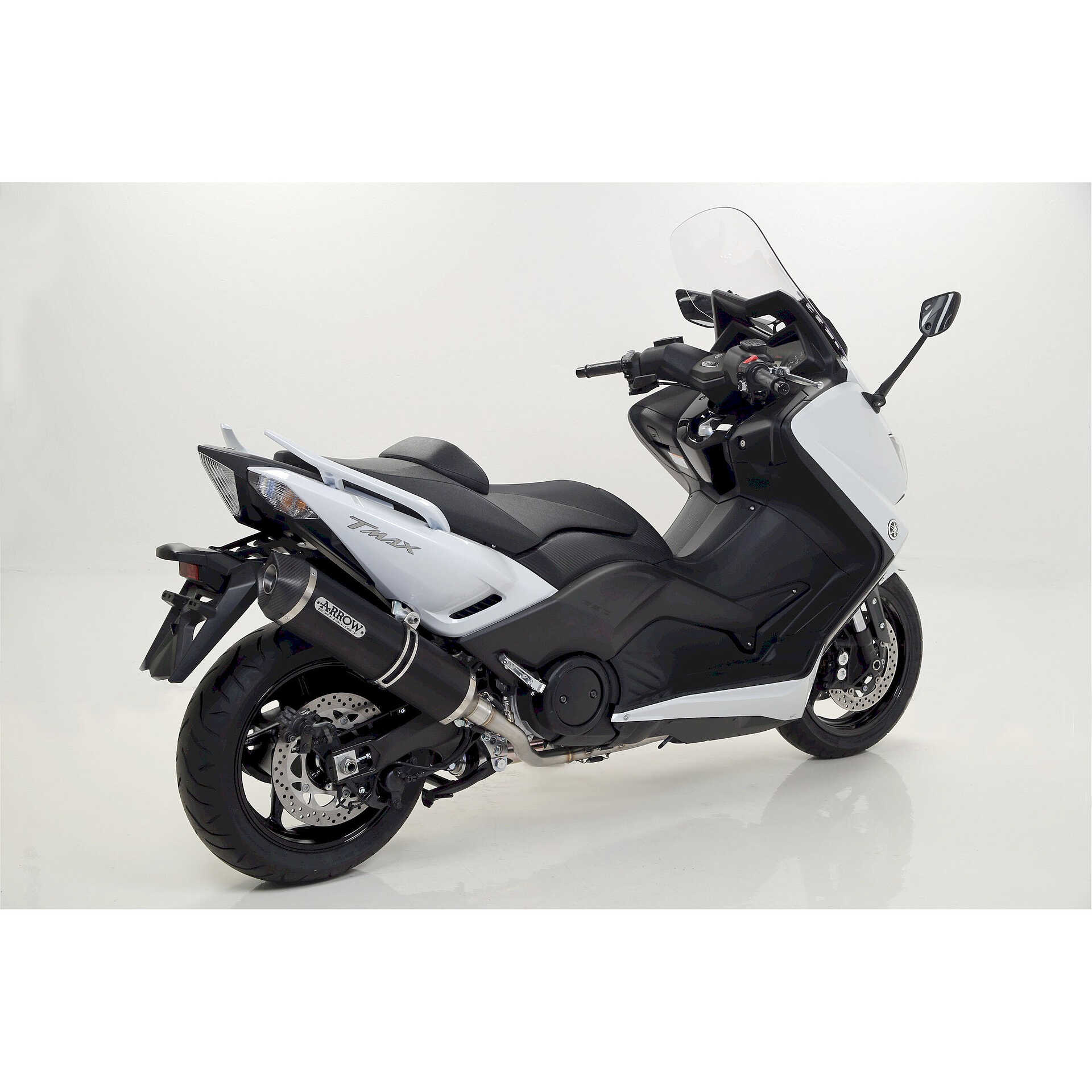

Specific For:

Yamaha

• TMAX 500 (2008 - 2011)
• TMAX 530 (2012 - 2016)

Technical Data Sheet:

• Body material: dark aluminum
• Rear pad material: carbon
• Silencer internal material: stainless steel
• Frame fixing type: cable tiesteel
• Body length (mm): 450.00
• Graft diameter (mm): 54.00
• Outlet diameter (mm): 50.00
• CO Probe: No
• Lambda probe: No
• dbKiller Presence: Yes
• Weight (Kg): 2.63

WARNINGS: Please read the technical information note available in the "Documents" section

ECE approval: Yes (approvals relating to noise and power control)

N.B: To be combined with an Arrow Header Kit:

• 71390KZ - EC approval: Yes (approval relating to the control of emissions into the atmosphere)
• 71390MI - EC approval: No (Racing Version)
• 71457KZ - EC approval: Yes (approval relating to the control of emissions into the atmosphere)
• 71457MI - EC approval: No (Racing Version)

N.B: The approval is valid only for the specified vehicle types and subsequent updates

ATTENTION: For correct assembly, we recommend that you go to an authorized workshop or a qualified mechanic

IF YOU HAVE DOUBTS ABOUT COMPATIBILITY, CONTACT US FOR MORE INFORMATION
