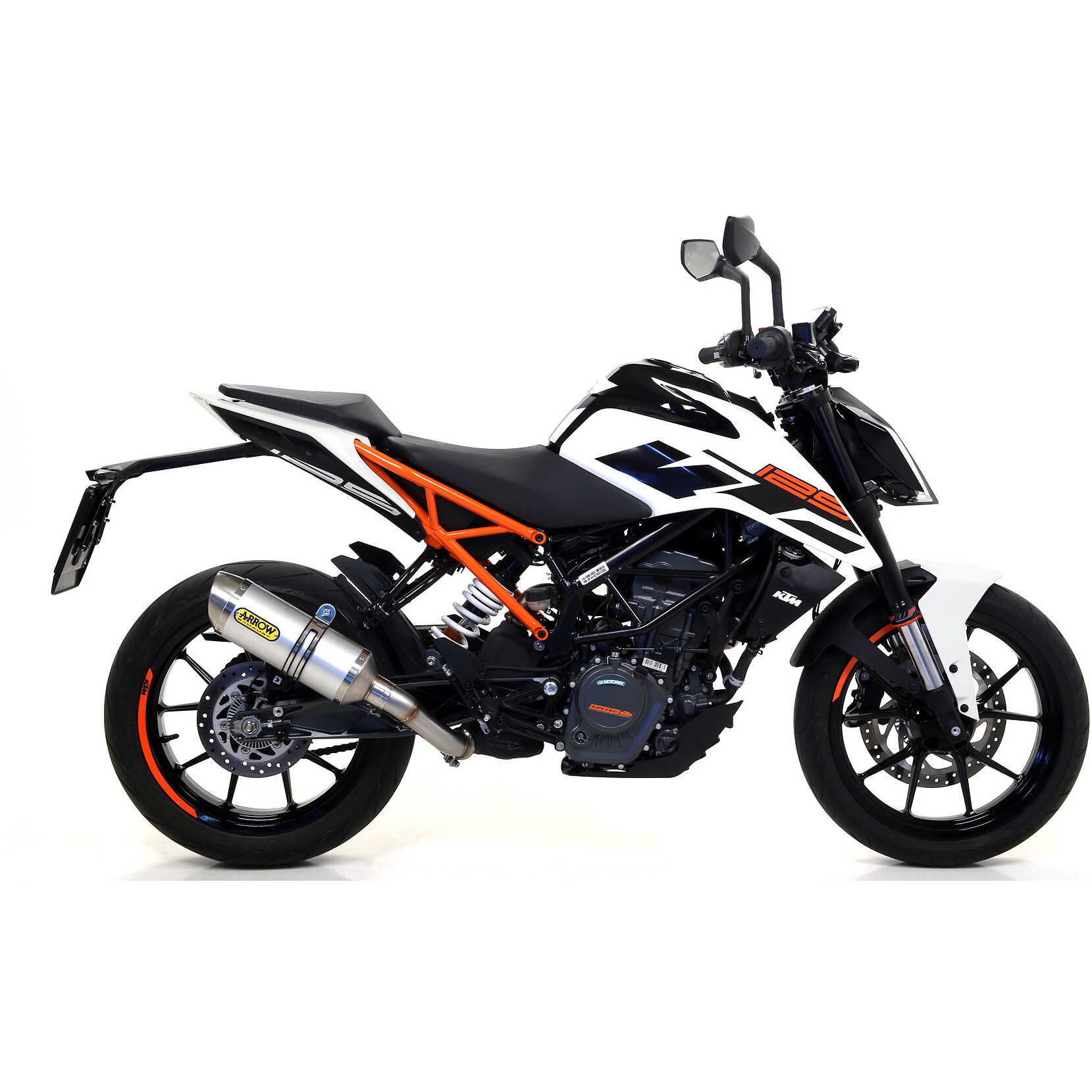

Arrow Thunder aluminum exhaust for KTM RC 125 / 390 (17-20); DUKE 125 / 390 (17-20)

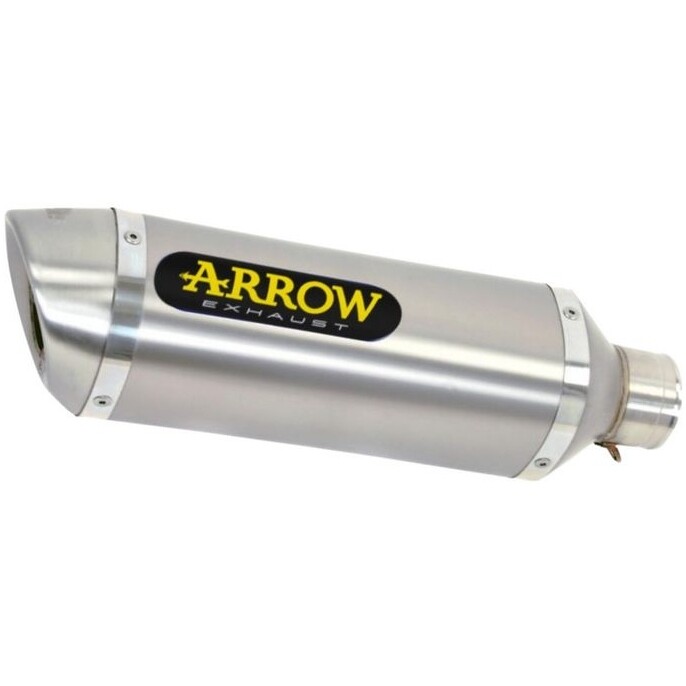

Thunder Aluminum Exhaust Terminal For

KTM

• RC 125 (2017 - 2020)
• RC 390 (2017 - 2020)
• DUKE 125 (2017 - 2020)
• DUKE 390 (2017 - 2020)

Technical Data Sheet:

• Body material: aluminum
• Back case material:stainless steel
• Silencer internal material: stainless steel
• Frame fixing type: carbon clamp
• Body length (mm): 270.00
• Graft diameter (mm): 54.00
• Outlet diameter (mm): 50.00
• CO Probe: No
• Lambda probe: No
• dbKiller Presence: Yes
• Weight (Kg): 1.83

WARNINGS Please read the technical information note available in the “Documents” section

ECE approval: Yes(approval relating to noise and power control)

NB: To be combined with a specific Original Manifold Connection

• 71675MI

NB: Compliance with both regulations is guaranteed only if the original catalytic system is maintained, or an Arrow silencer and catalytic system approved according to the applicable regulations are installed.

Complies with CARB regulations - California Air Resources Board ( - www.arb.ca.gov) The product is considered a “replacement part” for the purposes of CARB regulations only if the original catalytic converter(s) is not modified or removed and if no modifications are made to the control unit and any exhaust sensors. No Executive Order has been requested or obtained by Arrow or any of its subsidiaries or authorized representatives.

ATTENTION For correct assembly, we recommend going to an authorized workshop or a qualified mechanic.

IF YOU HAVE DOUBTS ABOUT COMPATIBILITY, CONTACT OUR CUSTOMER SERVICE FOR MORE INFORMATION
