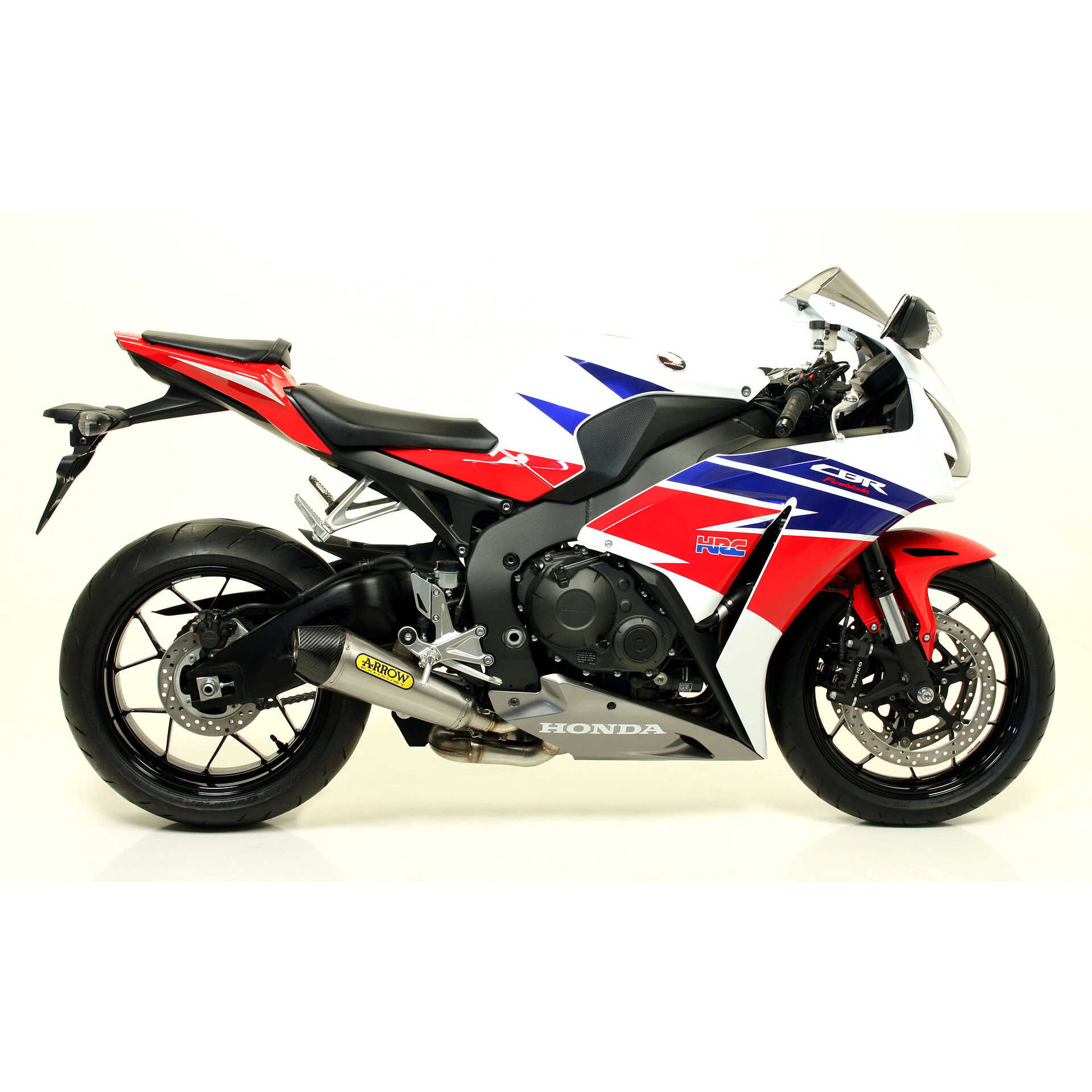

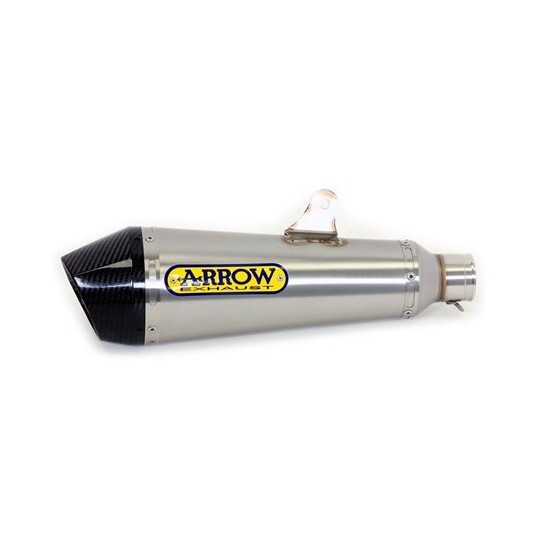

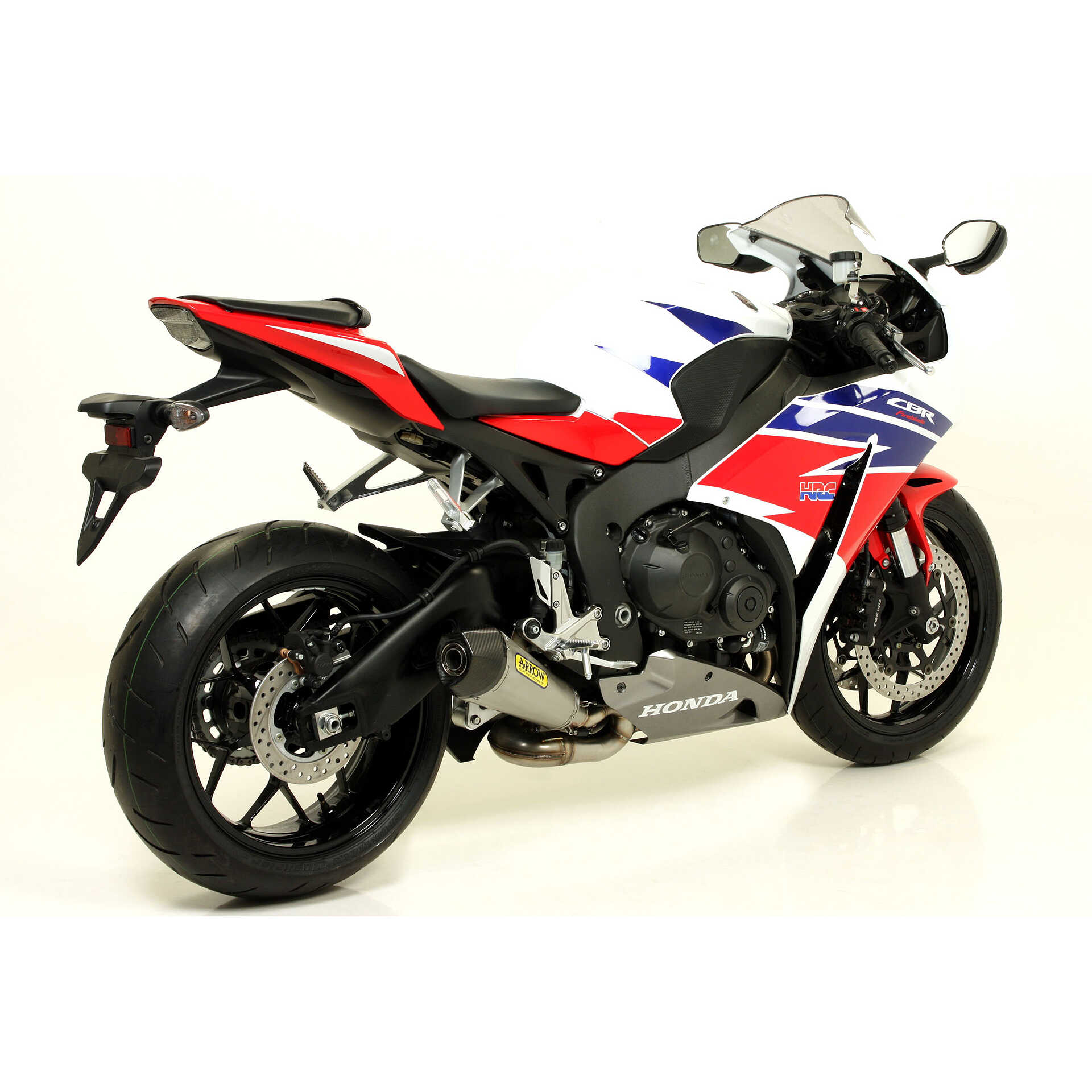

Arrow X-Kone Exhaust Muffler for Honda CBR 1000 RR (14-16)

Arrow X-Kone Exhaust Terminal For

Honda

• CBR 1000 RR (2014 - 2016)

Technical Data Sheet:

• Body material: stainless steel
• Rear pad material: carbon
• Silencer internal material: stainless steel
• Frame mounting type: welded mount
• Body length (mm): 300.00
• Graft diameter (mm): 54.00
• Outlet diameter (mm): 50.00
• CO Probe: No
• Lambda probe: No
• dbKiller Presence: Yes
• Weight (Kg): 1.93

WARNINGS Please read the technical information note available in the “Documents” section

ECE approval: Yes

N.B: To be combined with the specific Arrow fitting

71606MI - EC approval: No

ATTENTION For correct assembly, we recommend going to an authorized workshop or a qualified mechanic.

IF YOU HAVE DOUBTS ABOUT COMPATIBILITY, CONTACT OUR CUSTOMER SERVICE FOR MORE INFORMATION
