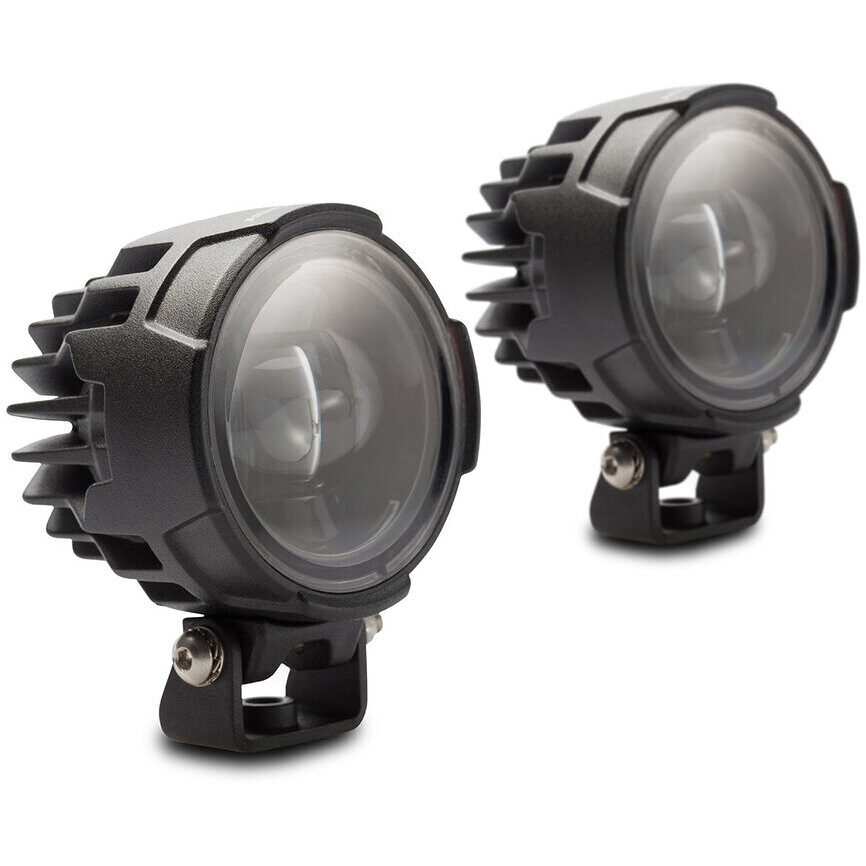

EVO FOG LIGHT Motorcycle Spotlights Sw-Motech NSW.07.004.51400/B BMW R1200 / 1250 GS

This kit includes all the parts needed to easily and safely install the spotlights.

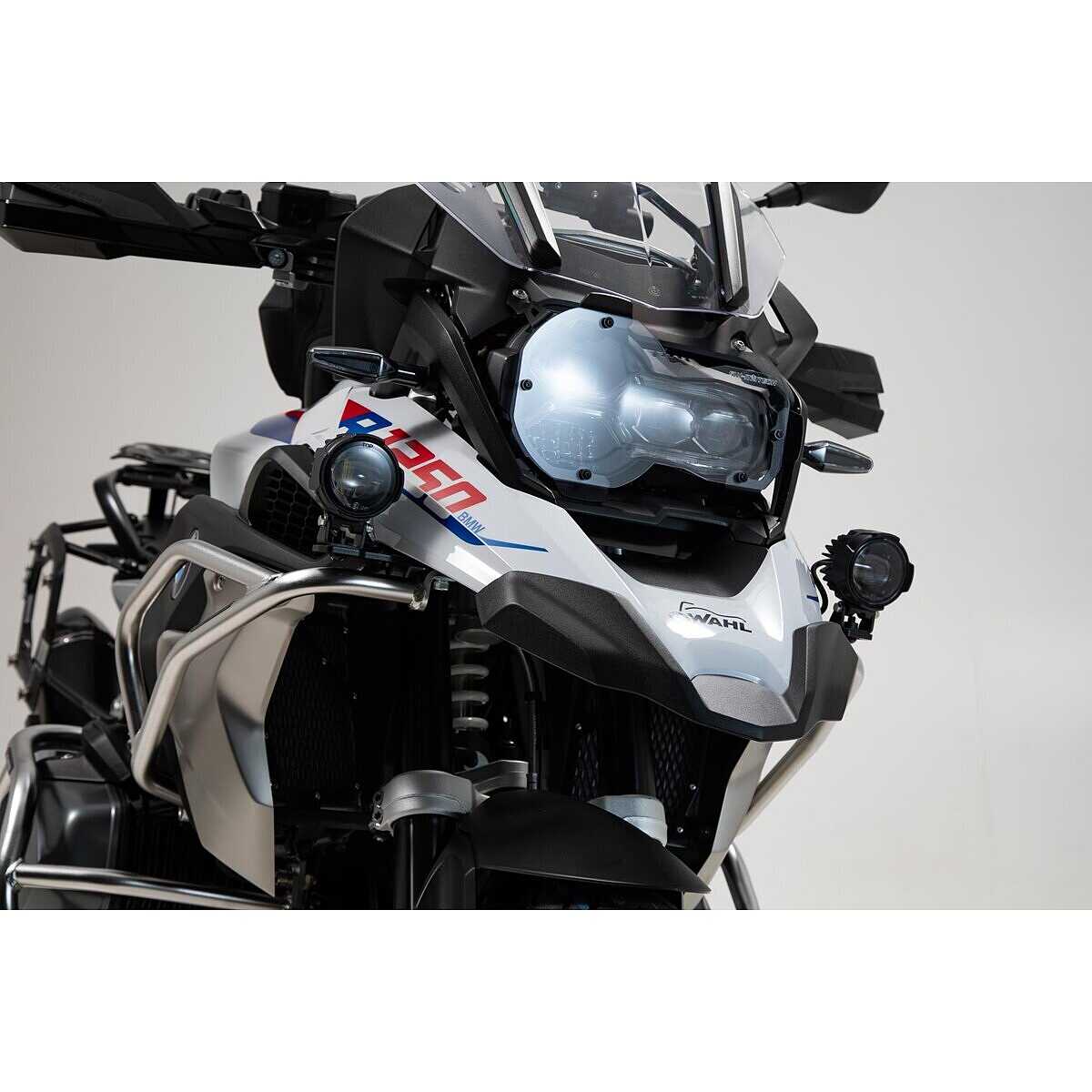

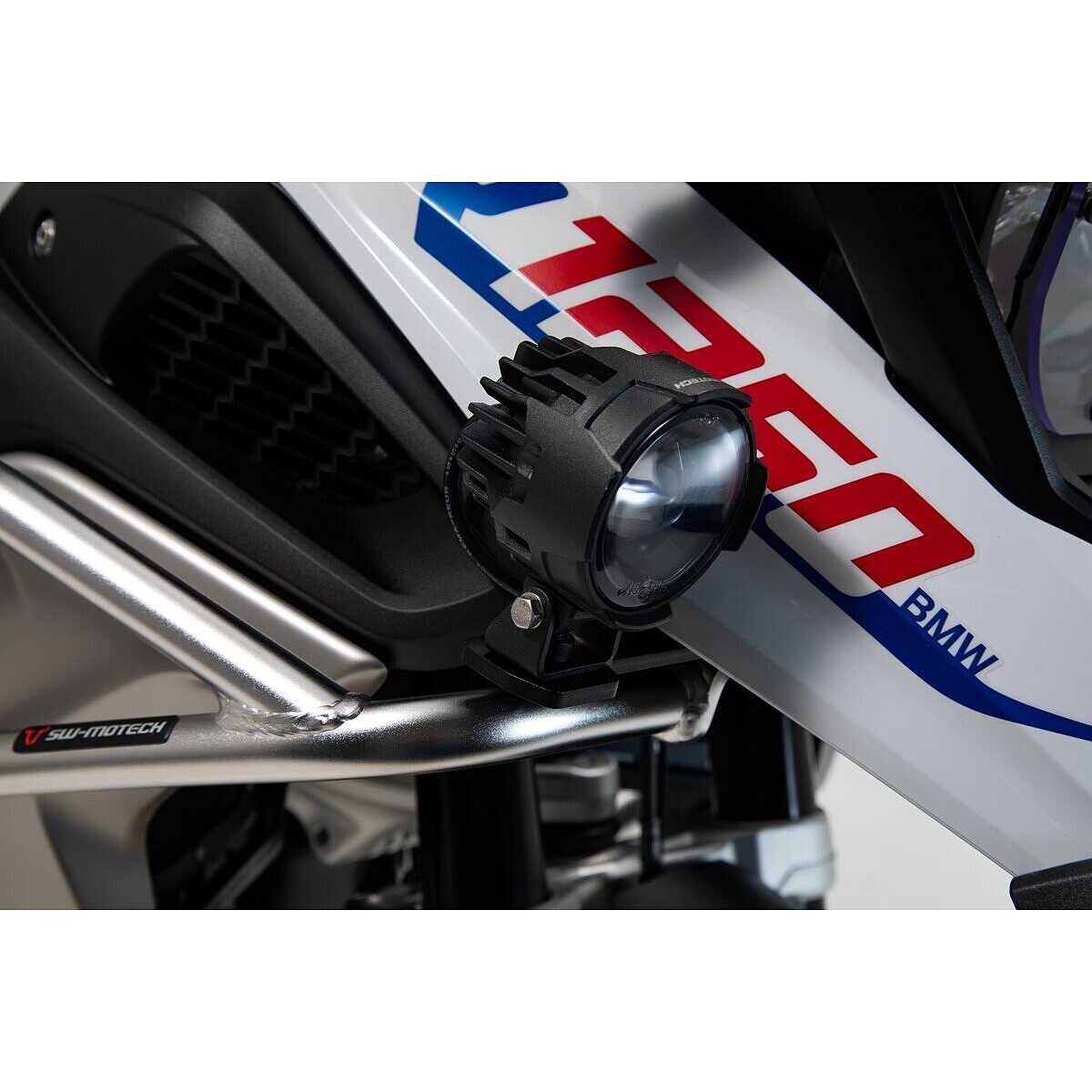

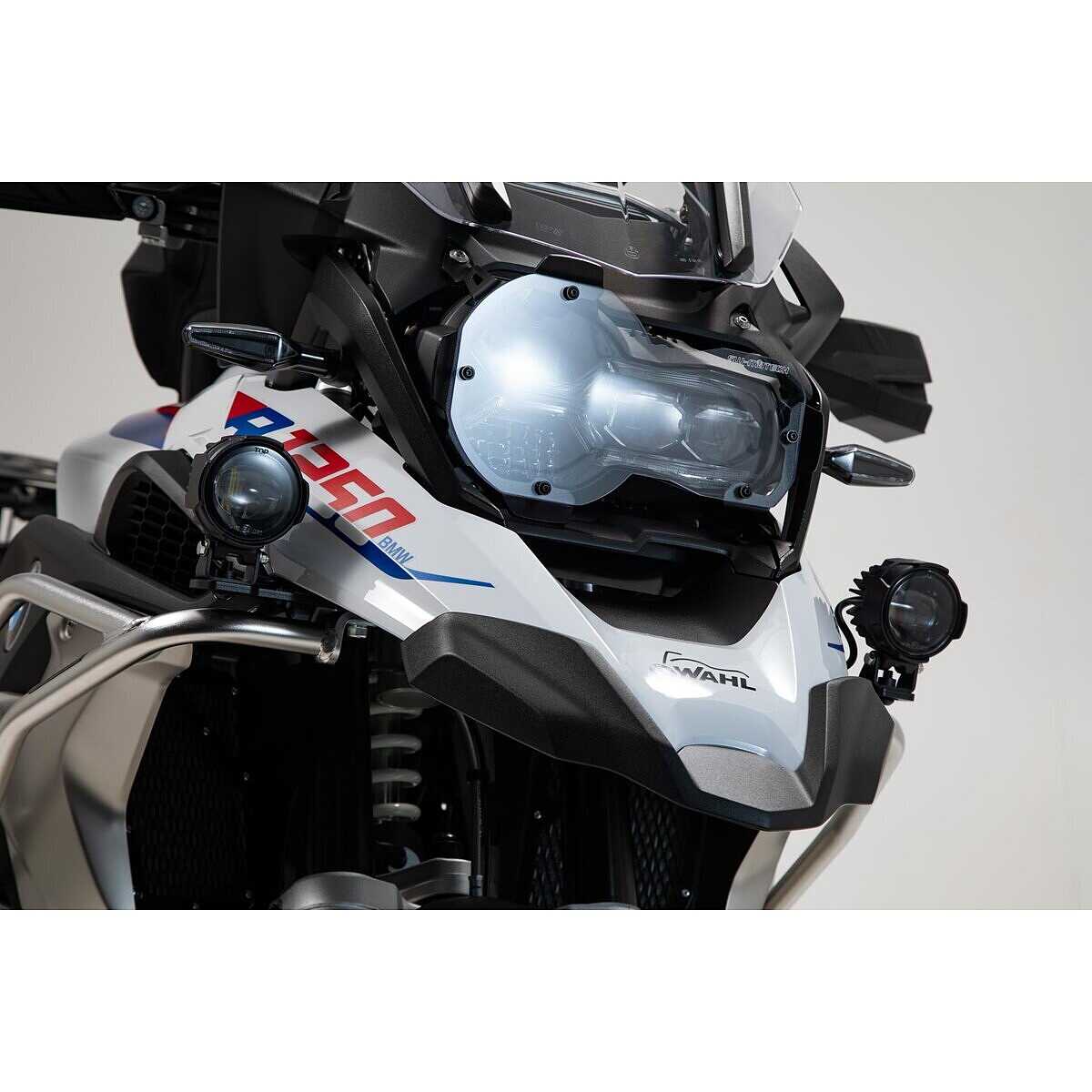

The model-specific spotlight brackets are attached to the original attachment points and allow for optimal positioning of the spotlights. The particularly wide light diffusion of the EVO fog lights allows you to "see and be seen" better in fog or bad weather.

The EVO fog light spotlights are waterproof and dustproof according to protection class IP69. The almost completely wear-resistant LEDs used for the premium spotlights guarantee optimal vision for years.

Spotlight support

• Compatible with SW-MOTECH lights
• Ease of assembly on available fixing points
• The specific design of the model ensures optimal positioning of the headlights.
• Corrosion protection thanks to high-quality powder coating
• Details
• Material: Steel
• Surface: Powder coated
• Color: Black
• Total weight: approx. 0.6 kg

EVO Fog Lights

• Trouble-free and maintenance-free operation thanks to the almost wear-free LED, with significantly reduced energy consumption
• Compact size with a diameter of 7.1 cm
• Waterproof and dustproof (protection class: IP69)
• Voltage: 12V; Wiring harness for easy connection to motorcycle battery is included, no modification to motorcycle electrical circuit required
• Illuminated and splash-proof handlebar switch for comfortable use
• The headlights are equipped with ECE test mark (ECE R19 F3)
• Power: 12W / Luminous flux: 1.050 LM each spotlight
• Anti-splash handlebar switch with green indicator light for comfortable use
• Fixing points on all four sides
• Mounting on the headlight clamps for tubular protectors (Ø 22, 26, 27, 28 mm) or on model-specific brackets

Details

• Material: Aluminum
• Surface: Powder coated
• Color: Black
• Size: 7.1 x 7.1 cm
• Total weight: approx. 1.3 kg
• I notify

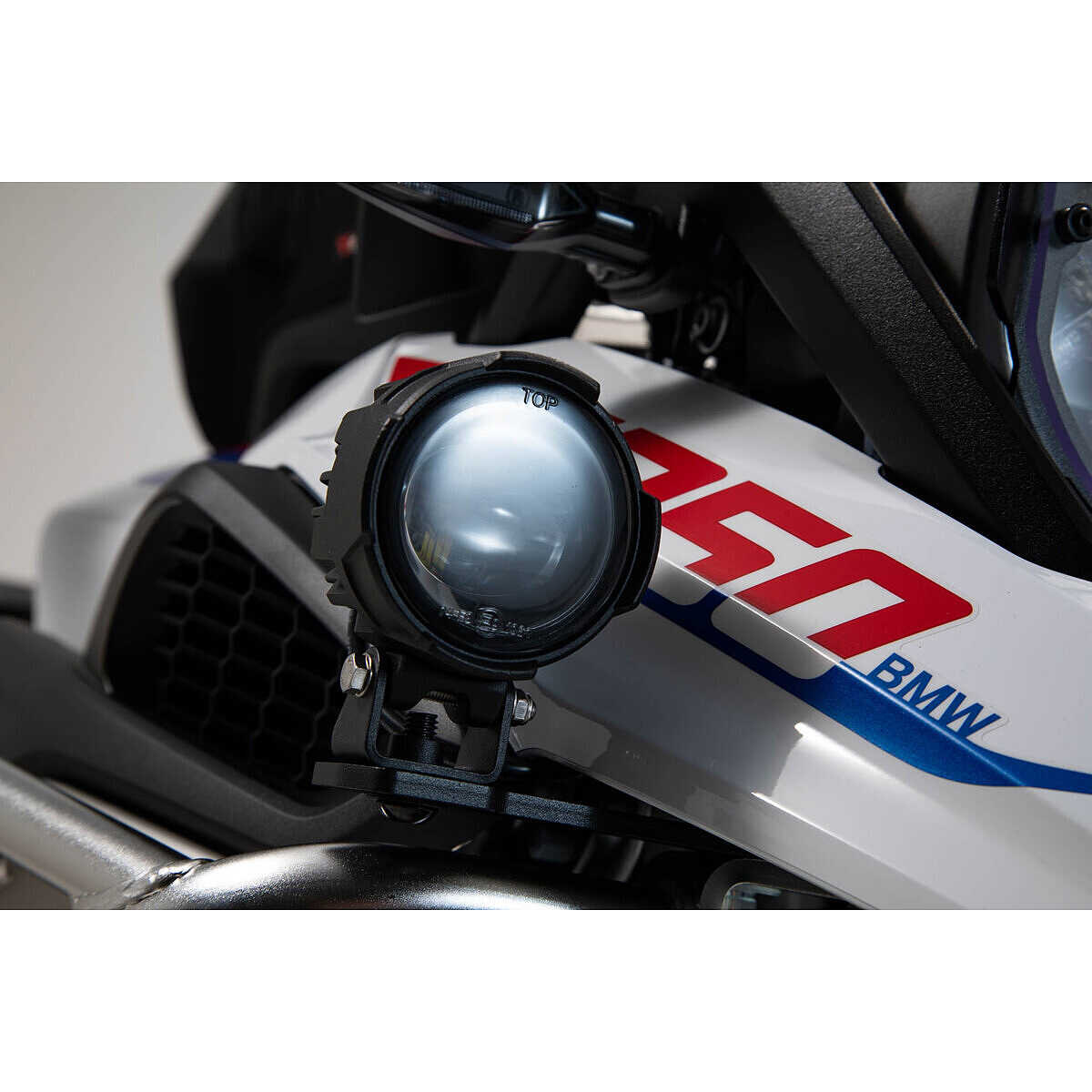

• Remember that the "TOP" marking must always be at the top, due to the curvature of the reflector.
• Please observe the legal regulations in force in your country for the operation and installation of fog lights.

Required for installation

• Model-specific tubular protection clamps or spotlight holders are available separately.
• Contents of the shipment
• 2 x EVO Fog Lights, Aluminium, Black
• 2 x Spotlight Holder, Steel, Black
• 1 x Wiring with protection
• 1 x Handlebar Switch
• Assembly instructions
• Mounting material
• Color: Black
• Total weight: approx. 2.1 kg

I notify

• Mountable only with the SW-MOTECH logo facing upwards due to the curvature of the reflector. Depending on the model, suspended and/or vertical mounting is possible (see mounting instructions).
• Please observe the legal regulations in force in your country for the operation and installation of fog lights.
