Pro Side Frame Black Sw-Motech KFT.22.822.30001/B For Ducati Multistrada V4 (20-)

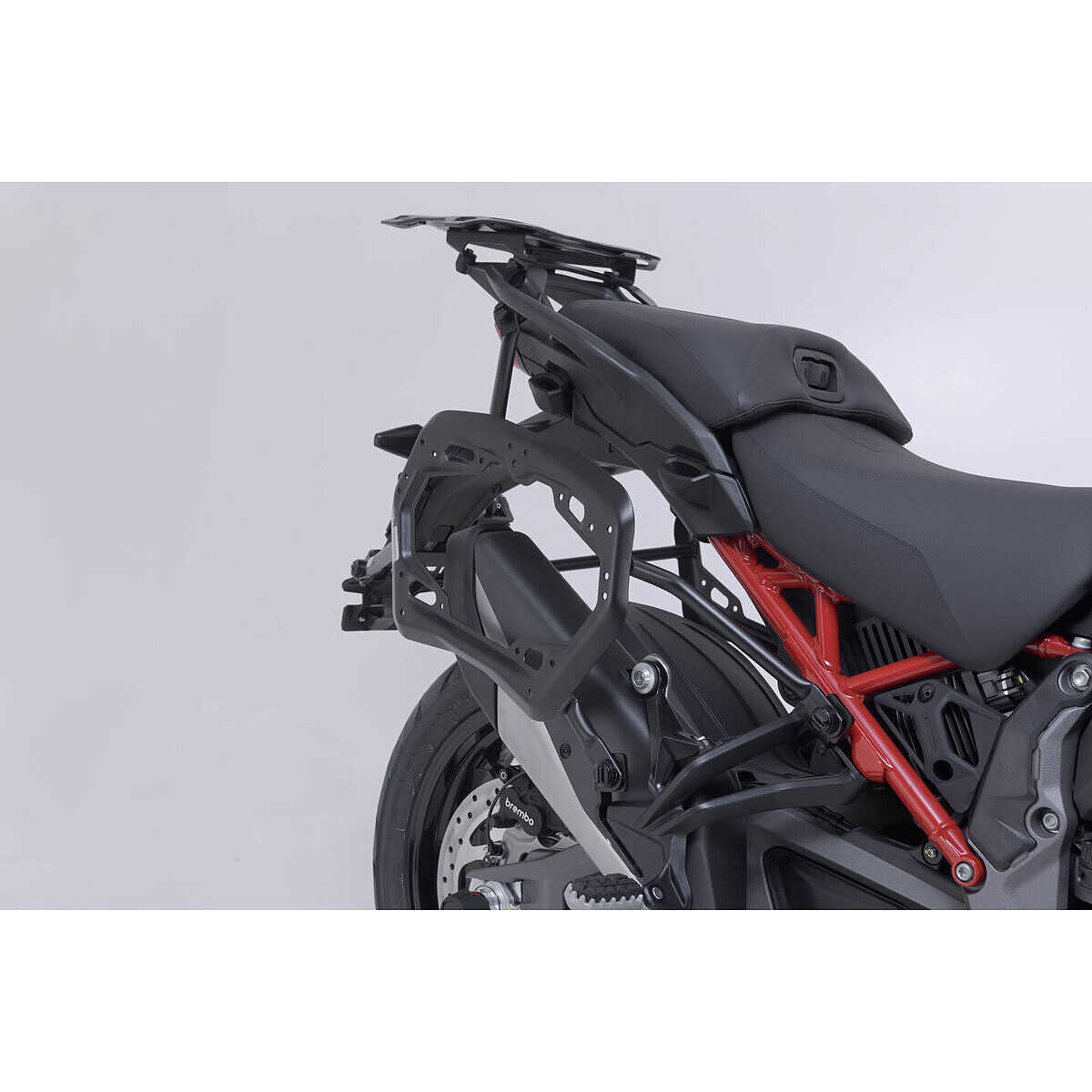

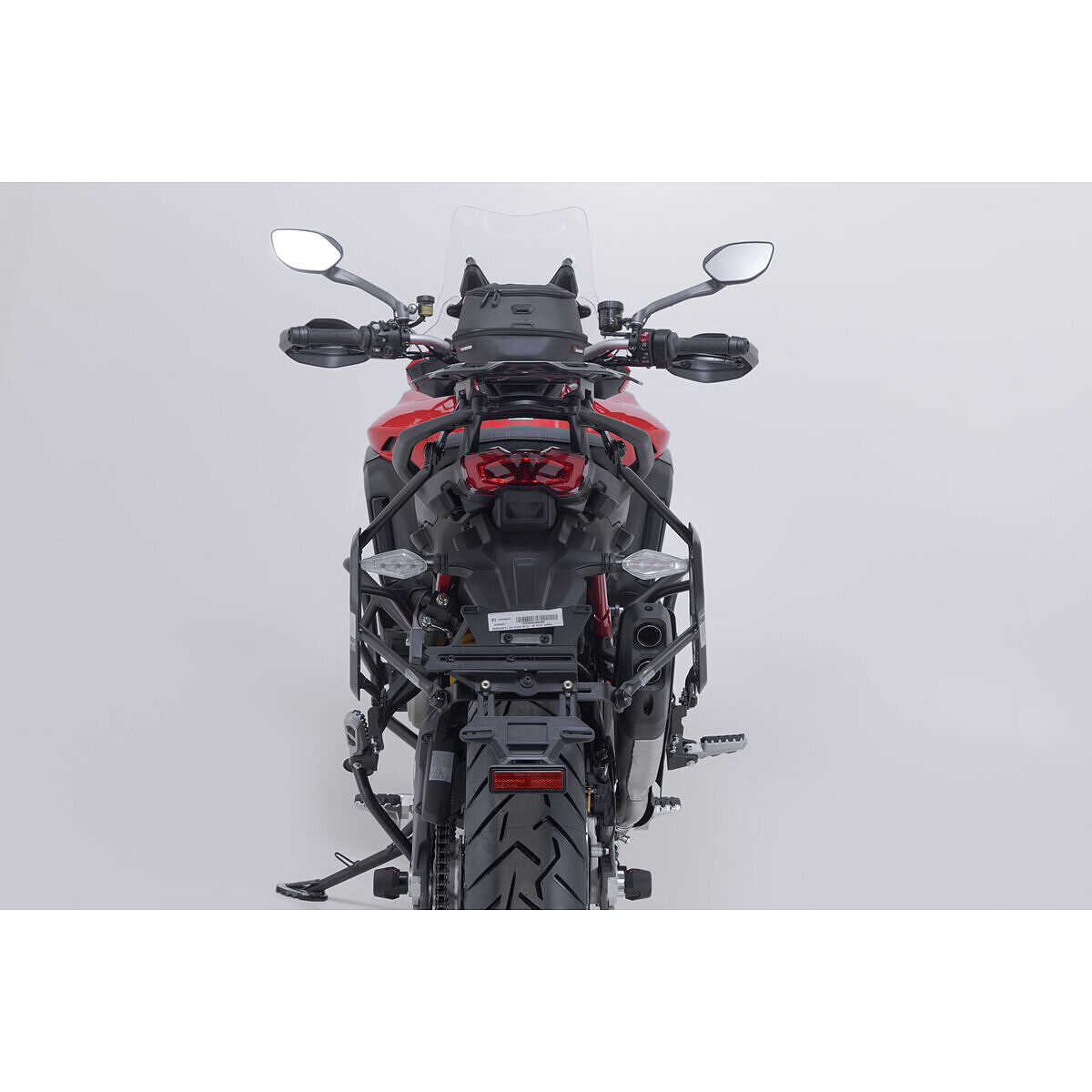

We designed these PRO side frames to fit perfectly on the rear of the Ducati Multistrada V 4 and to stay as close to the vehicle as possible. The overall width of the frame, without the bag, is 560 mm.
Even more robust, even more adventurous—but still removable: With the introduction of the first removable side carrier for motorcycle cases, we've established the PRO side carriers as the next generation in the accessories market. Off-road enthusiasts will be thrilled. The model-specific PRO side carrier, made of 2.5 mm thick steel, is extremely durable.
The PRO side carrier provides a secure hold for side cases and the SysBag WP L – the corresponding adapter kits are available separately. The PRO side carrier's numerous functional mounting holes allow for the attachment of additional accessories.
We also rely on innovative QUICK-LOCK quick-release fastening systems. To release the quick-release fastening systems, simply rotate them a quarter turn as usual using a flathead screwdriver or our multitool. The frame is completely removed in an instant, leaving only a few inconspicuous elements on the motorcycle. Those who want to permanently attach the PRO side carrier to their motorcycle can take advantage of the newly developed quick-release fastening systems. A fastening kit will no longer be necessary, as the PRO side carrier is securely attached using inexpensive standard screws (M8). You can also purchase a matching screw set (M8) separately from us.
Technical Data Sheet:
- Extremely durable thanks to its optimised shape and 2.5 mm thick steel
- Perfect fit, built specifically for the motorcycle model
- Completely removable thanks to the new, even more robust quick-release fasteners
- Optional anti-theft device available separately
- For permanent mounting, quick-release fasteners can be replaced with standard components (M8)
- Numerous function holes

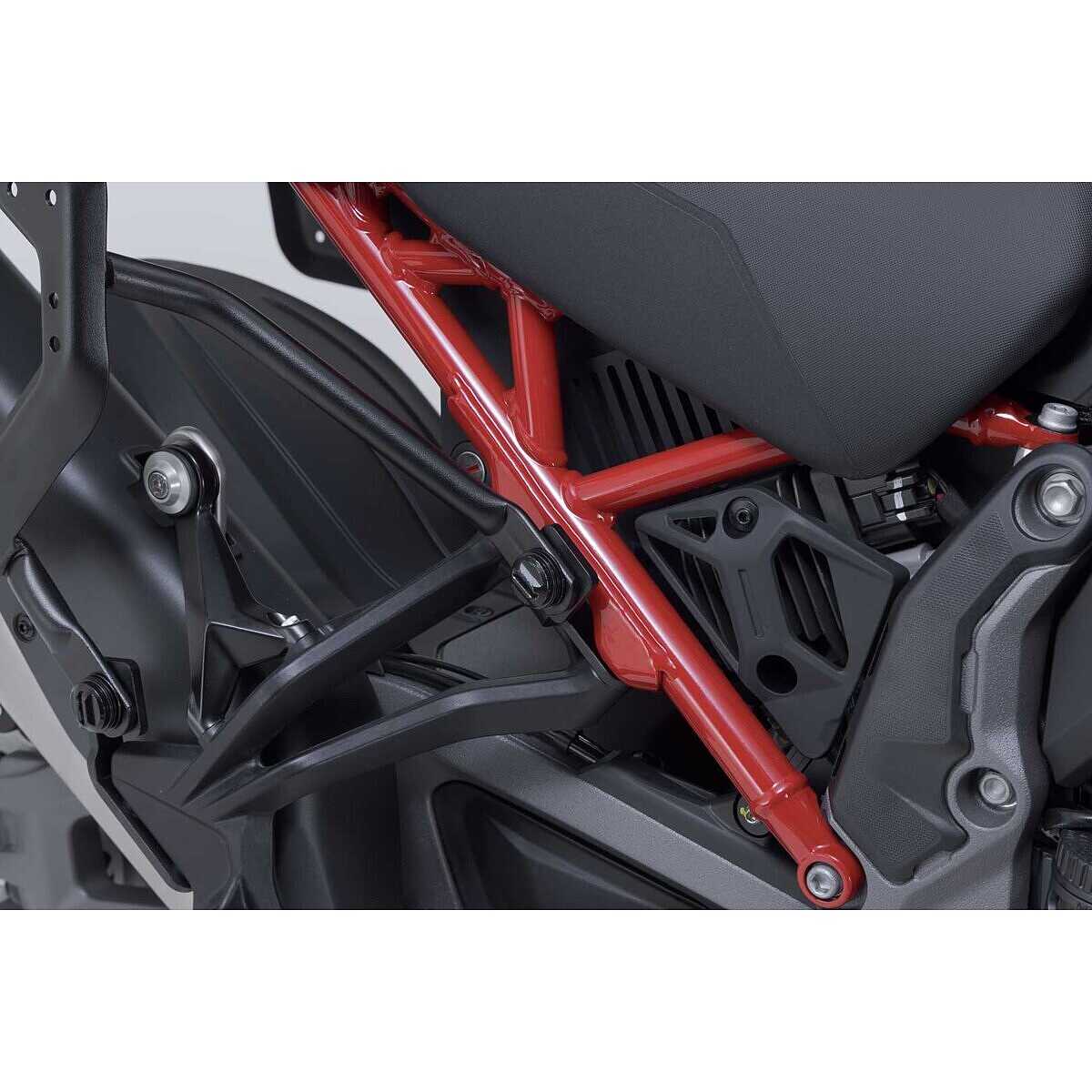

- Easy installation on the original attachment points
- Effective corrosion protection thanks to powder coating

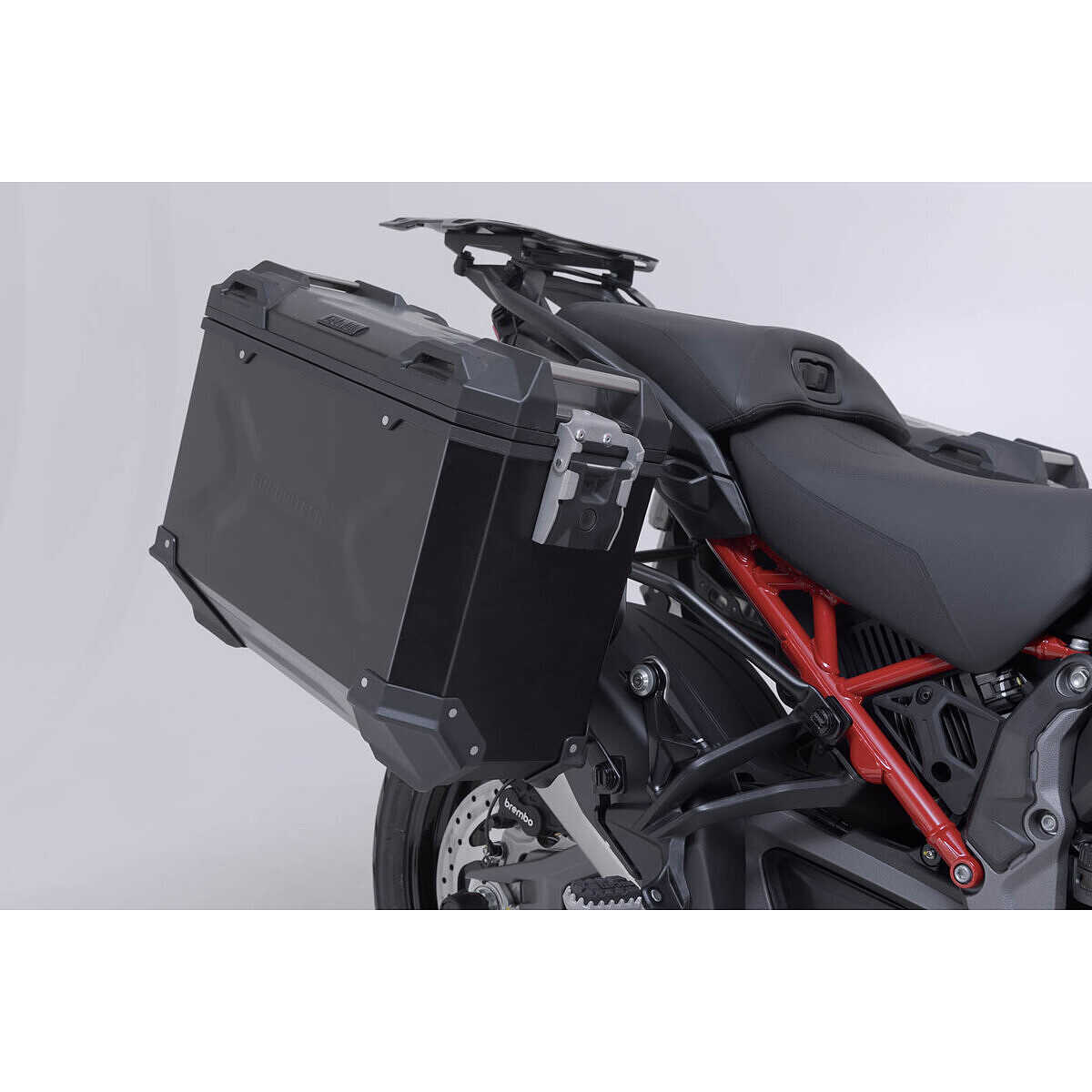

- Secure attachment for TRAX, DUSC, AERO and SysBags WP L with adapter plate
Contents of the shipment

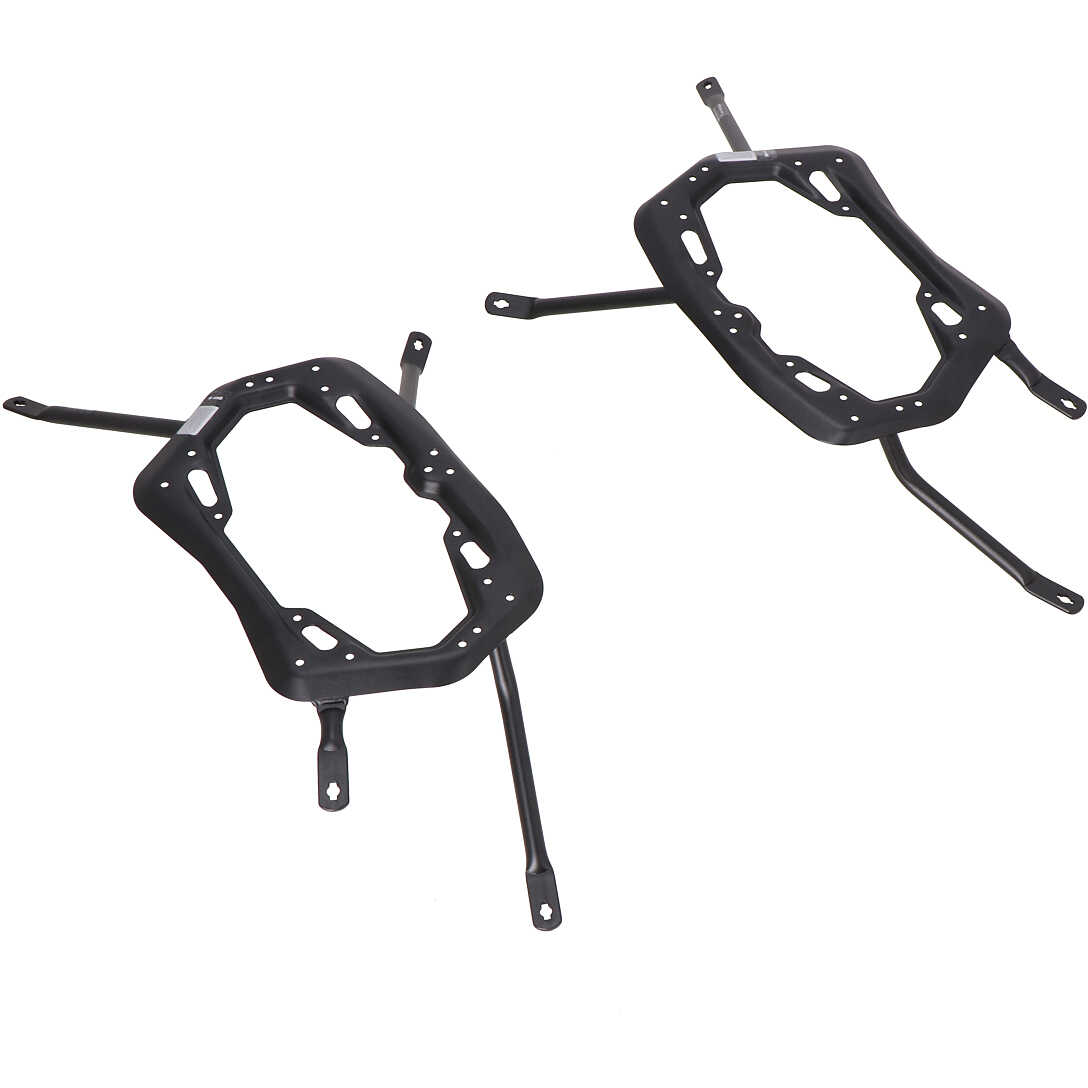

- 2 x PRO Side Frame
- Assembly instructions
- Assembly material
Details
- Material: Steel
- Surface: powder coated
- Color: black
- Total weight: approx. 5.5 kg
- Width mounted on the motorcycle: 56.0 cm
I notify
- You can also purchase separately the necessary adapter kits for aluminum cases from SW-MOTECH and other manufacturers, for AERO ABS side cases, as well as for SysBag bags (SysBag 15, 30, WP L) with adapter plate
