Sw-Motech Brake Pedal Extension FBE.19.806.10000/B for BENELLI TRK 502 X (2018 >)

Sw-Motech Brake Pedal Extension FBE.19.806.10000/B for BENELLI TRK 502 X (2018 >)

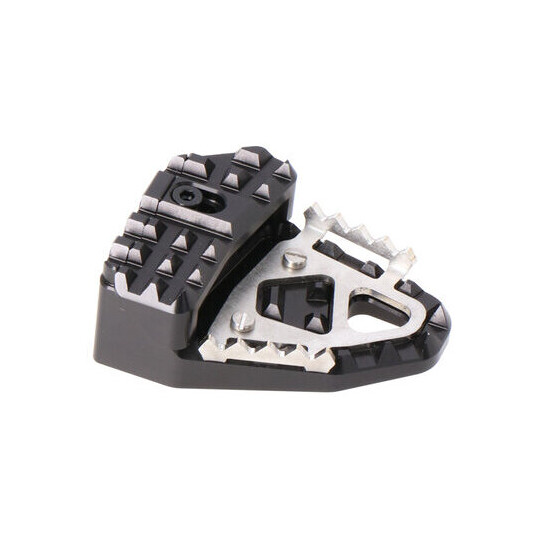

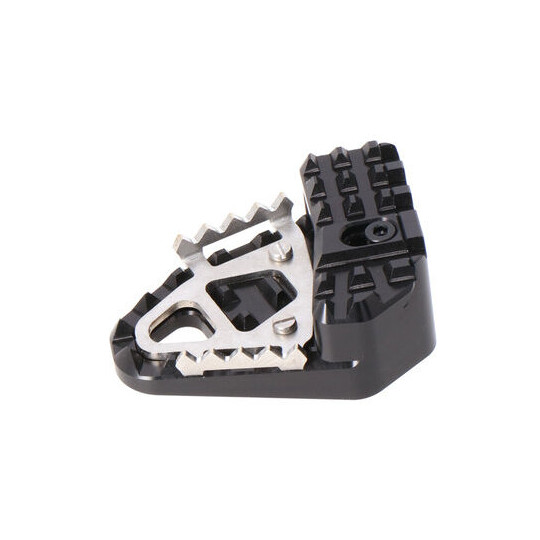

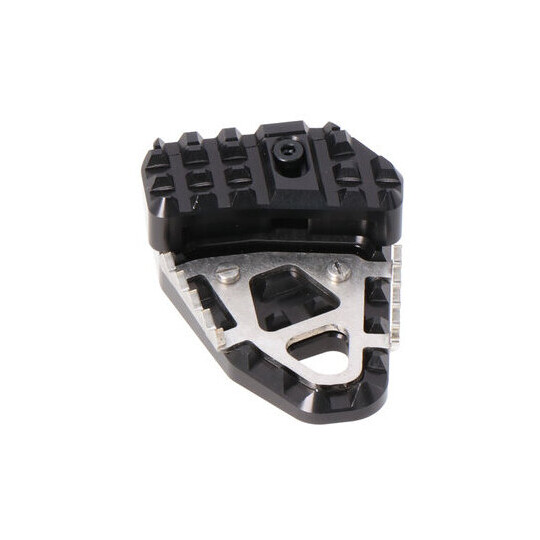

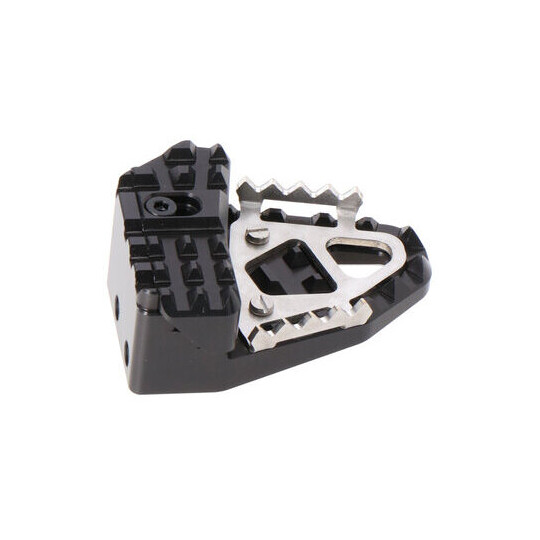

SW-MOTECH makes this brake pedal extension from milled aluminum suitable for the original brake pedal of the Benelli TRK 502 X (18-).

SW-MOTECH manufactures the extensions from machined, high-strength aluminum alloy with a black anodized surface and a stainless steel base plate. For optimal ergonomic fit, the brake pedal base can be adjusted to two levels: 22 or 27 millimeters.
The brake pedal extension is perfect for off-road driving: it complements the original brake pedal base, ensuring a secure and well-calibrated support on the brake. The extension allows both widening and raising the contact surface. The brake pedal extension therefore offers greater safety and better control of the rear wheel brake.
When riding off-road, you often transition from a sitting to a standing position. In the latter case, the knee angle changes, and the foot may exert less pressure on the pedal. By raising the support surface, the foot flexes more and can comfortably reach and control the brake lever even when standing. The lift can be adjusted to two different levels.
In addition to the lift, the brake pedal extension features a larger contact surface. It features a serrated surface, providing better grip when the lever surface is dirty or wet.

Technical Data Sheet:

• To complete the original brake lever footrest
• Raised and wider support surface
• Better grip thanks to the serrated surface, even in case of dirt and wetness
• Raising the support surface by 22 or 27 millimetres

Contents of the shipment

• 1 x Brake Pedal Extension
• Assembly instructions
• Assembly material

Details

• Material : Aluminum / Stainless Steel
• Surface : anodized
• Color : black / silver
• Total weight : approx. 0,1 kg
