Universal Smartphone Navigator Holder Sw-Motech GPS.00.308.35300 T-Lock

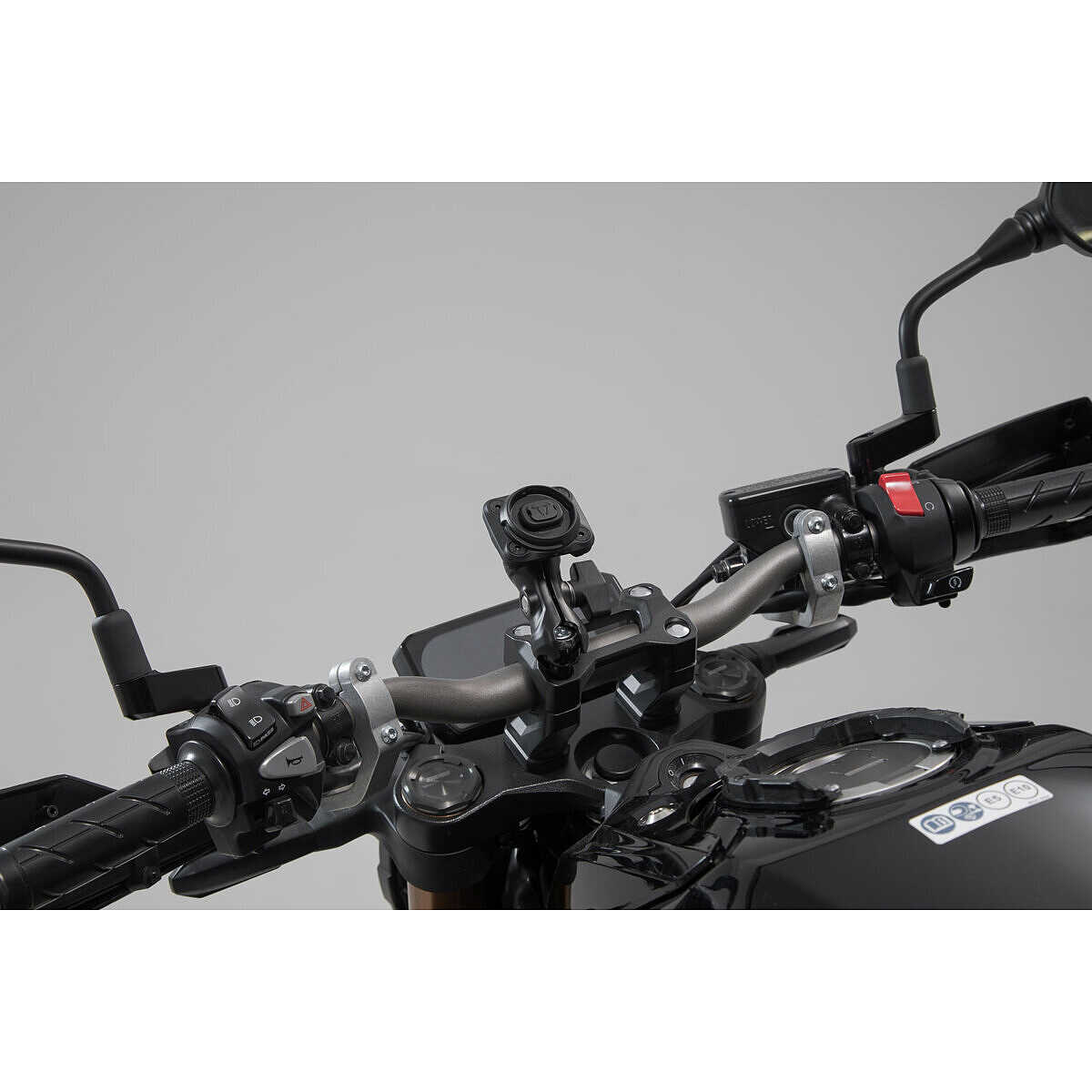

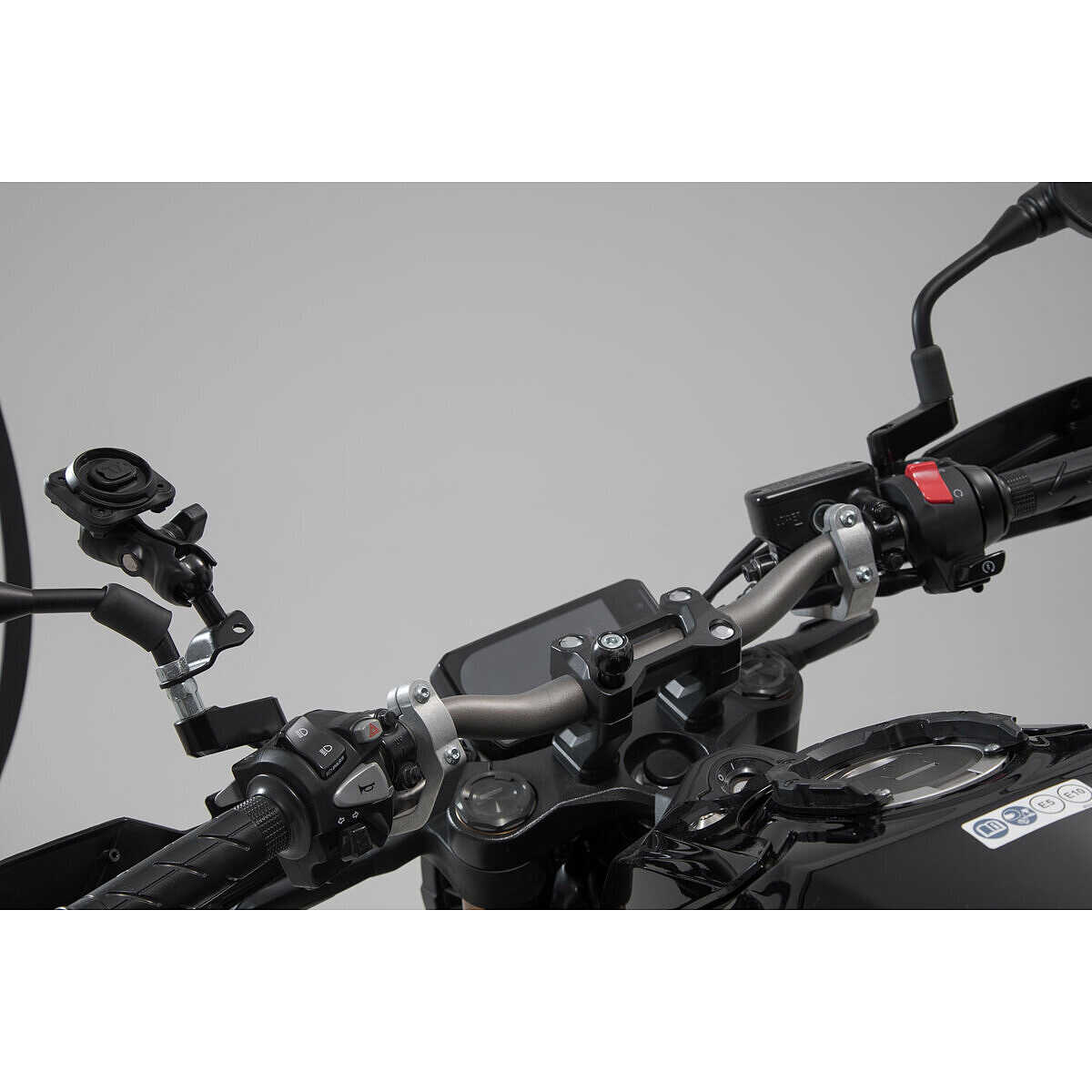

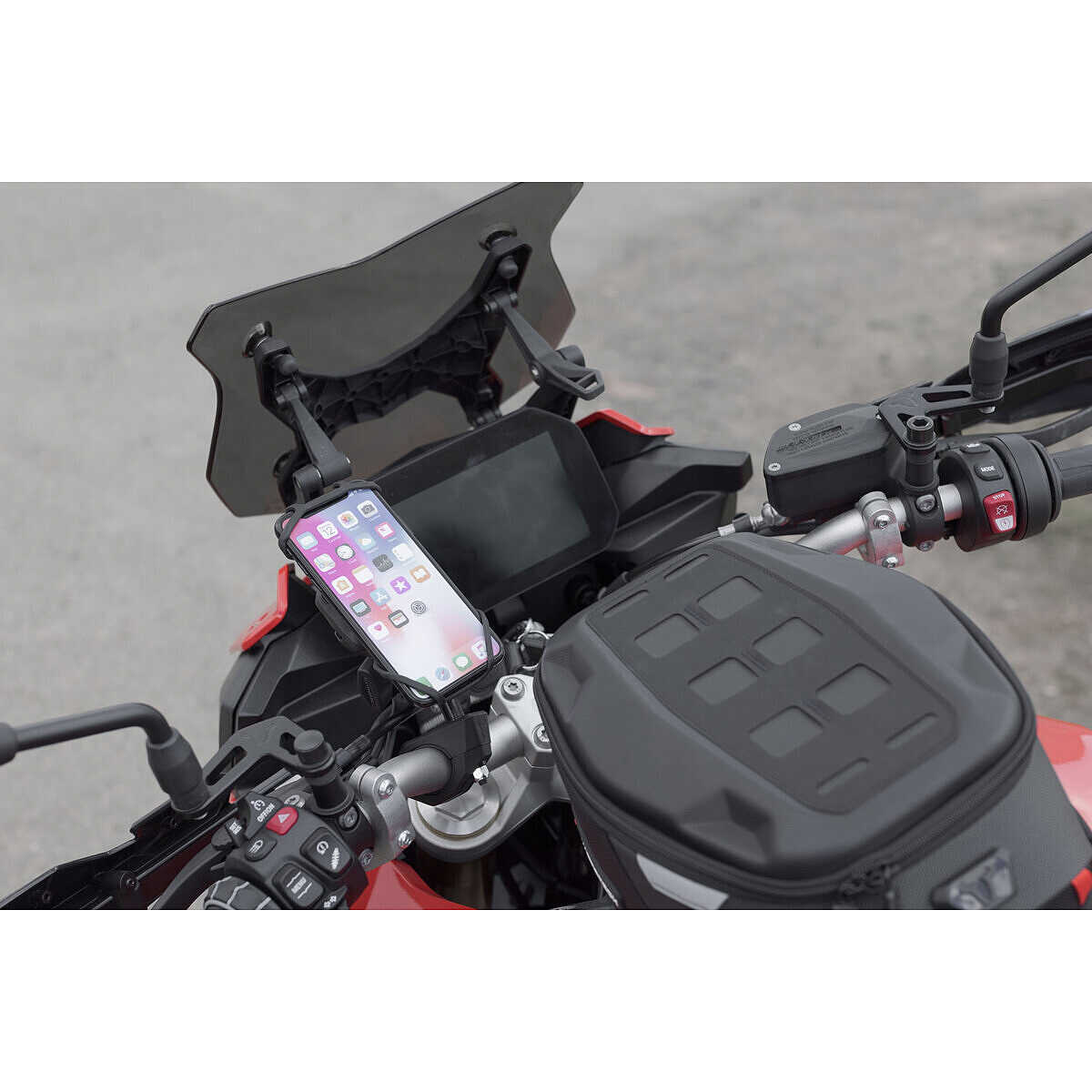

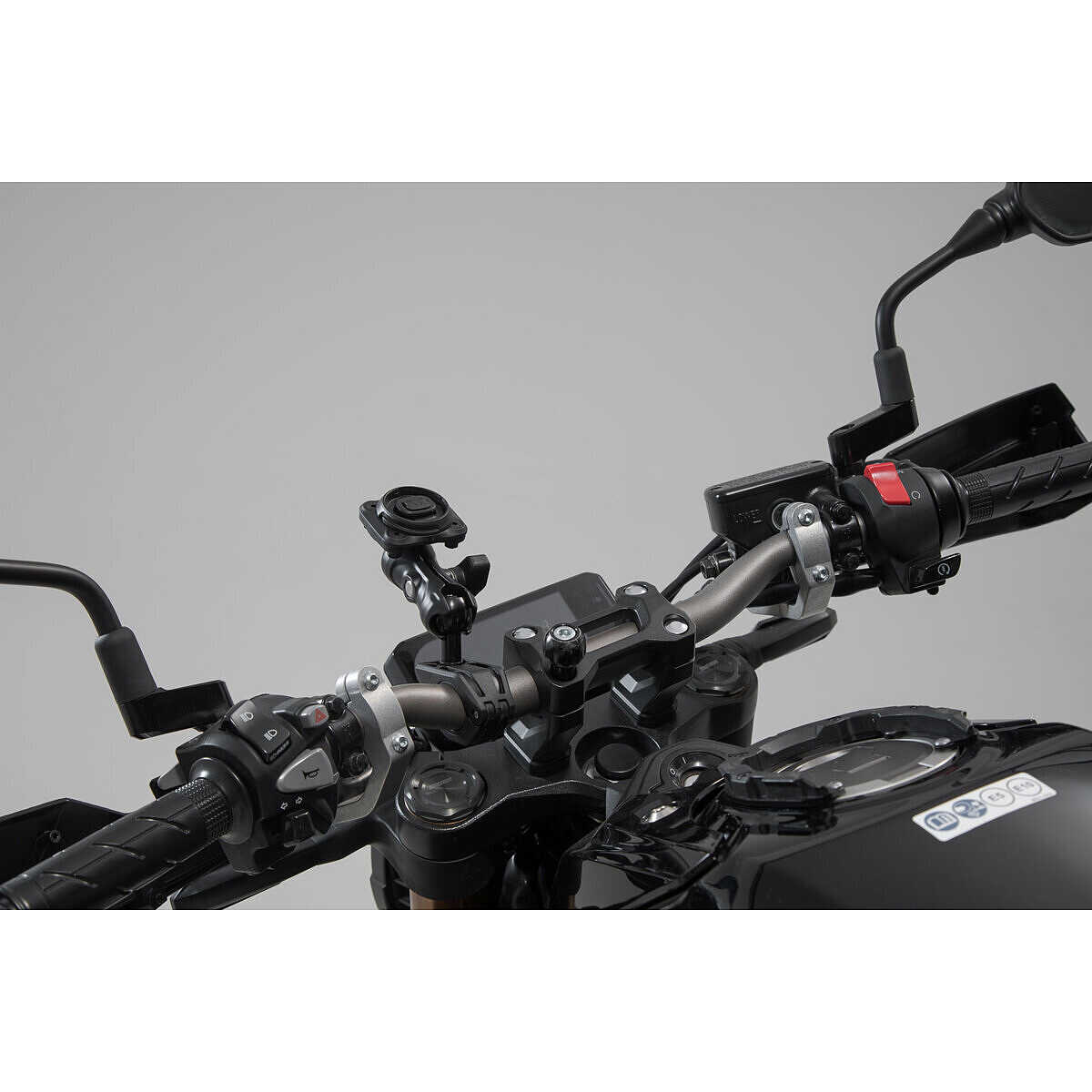

Our universal kit offers a wide range of mounting options on the motorcycle: the included 1 inch ball can be mounted on M6 or M8 threads, on the mirror thread and also with a clamp. The clamp is designed for handlebars with a diameter of 22 mm, 28 mm or 1 inch. A swivel clamping arm makes it easy to position on the dashboard, so the display always remains visible, without obstructing the view of the instruments. The T-Lock holder with smartphone mount included in the delivery allows smartphones to be quickly attached to the universal navigation kit. The T-Lock holder can be attached to the clamping arm with a quarter turn clockwise. The silicone straps of the smartphone mount allow the attachment of devices of different sizes.

Technical Data Sheet:

• For smartphones with maximum external dimensions of 150 x 75 x 10 mm and minimum external dimensions of 130 x 70 x 6 mm
• T-Lock support for quick fixing to the clamping arm
• Smartphone holder with silicone straps
• The 2" clamping arm and balls allow for custom positioning
• The clamping arm can be swivelled around two axes up to 90°, respectively 45°.
• The included 1 inch ball can be mounted on M6 or M8 thread, on the mirror thread and also with a clamp.
• Handlebar clamp with diameter of 22, 28mm or 1 inch

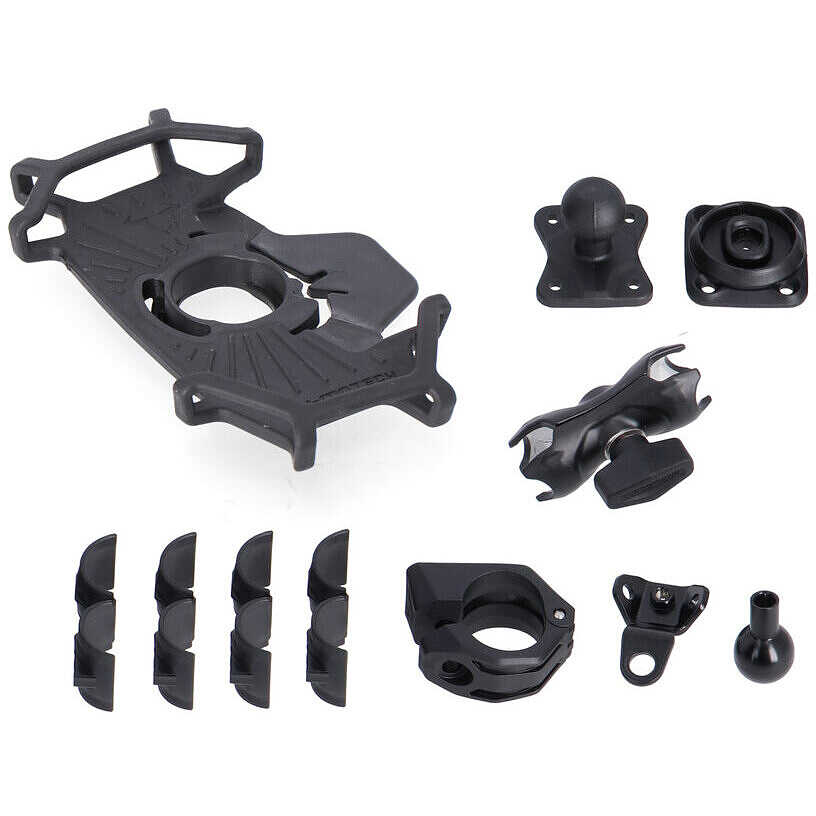

Contents of the shipment

• 1 x Clamp with rubber inserts
• 1 x Bearing with M8 thread and M6 adapter
• 1 x Mount for fixing on mirror thread
• 1 x 2" Clamping Arm
• 1 x Ball Joint with Mounting Plate
• 1 x T-Lock Smartphone Holder
• Assembly instructions
• Mounting material

Details

• Color: Black
• Total weight: approx. 0,5 kg
