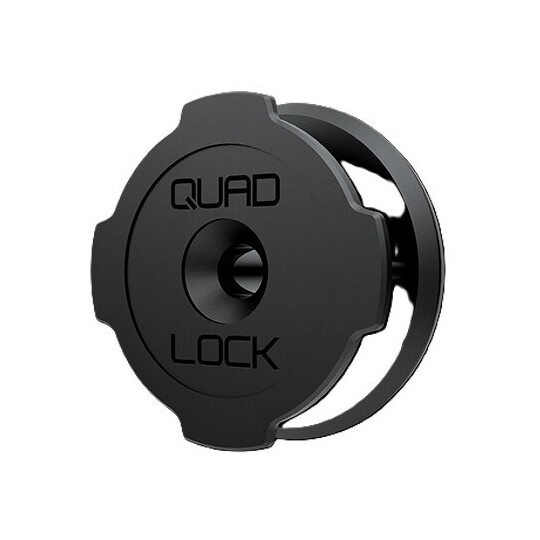

Quad Lock QLM-WAL-2 Wall Adhesive Mount V2

The Quad Lock® Adhesive Wall Mount is the ideal solution for mounting on any flat surface in your home, kitchen, bathroom, office, or car.

SAFE ASSEMBLY
Each Quad Lock® adhesive mount features 3M™ VHB (ultra-high bond strength) adhesive. Simply peel off the red backing paper and apply to any clean, dry, non-porous surface.

EASY TO ATTACH/DISASSEMBLE
The Quad Lock system is the fastest and easiest way to securely mount your smartphone. Simply twist and lock. It's all about technique, not strength.

NOTE: It is recommended to thoroughly clean the surface before applying the backing with an alcohol-based cleaner.

Alternatively, for a more permanent and secure mounting solution, you can secure the mount to the wall using a 6-8 gauge screw (not included).

Technical data sheet:

• 3M™ Adhesive
• glass-fiber reinforced nylon
• diameter 36 mm (1-27/64”)
• height 13.8 mm (35/64”)
• Compatible with all Quad Lock® cases and universal adapters

Guidelines:

The wall mount can be attached to various flat surfaces.

3M™ Adhesive VHB 4991 adheres to smooth, non-rough, non-porous surfaces such as:

• Uncoated glass (e.g. windshield)
• Plastic materials such as PC, ABS, PVC, nylon, acrylic (e.g., (car dashboard and console)
• Metals
• Fiberglass
• Sealed wood

Recommended applications:

• Car / 4x4 interiors
• Boats
• Caravan
• Any low vibration element

It is not recommended for the following substrates:

• Rubber, TPU, TPE
• Skin
• Silicone
• Soft touch coating or paint
• Low surface energy plastics such as polypropylene (PP), polyethylene (PE), acetal, HDPE
• Untreated wood

Make sure the substrate is perfectly clean and dry before applying the flexible adhesive base.

3M™ VHB™ Tape is a single-use adhesive and is not reusable.
