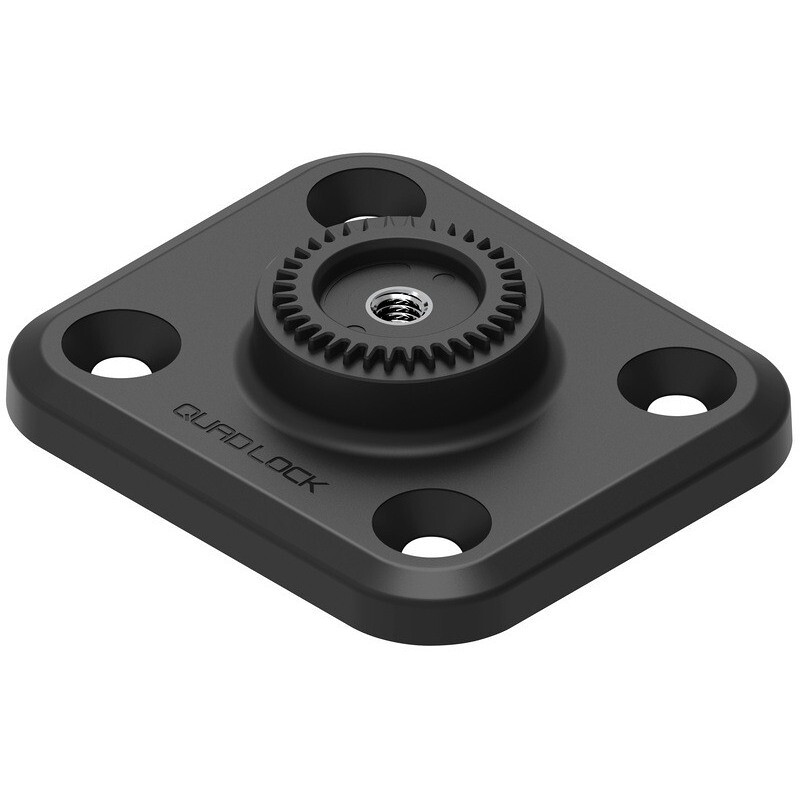

Quad Lock QLP-360-F4H 360 Four-Hole Flat Rectangle Base

Securely attach the mount to flat surfaces using one of our flat-hole rectangular bases.
They can be fixed to flat surfaces vertically, diagonally or horizontally.
The base uses the universal AMPs hole spacing standard and the holes are compatible with 10G or M5 countersunk screws.
10mm spacers and 2 screws are included to attach the spacer to the Quad Lock 360 HEAD or ARM.
Please note: Screws for fixing the base to the desired surface are not included.

Made from durable nylon and use the universal AMPs drilling standard.

The holes can accommodate 10G or M5 countersunk screws.

Specifications:

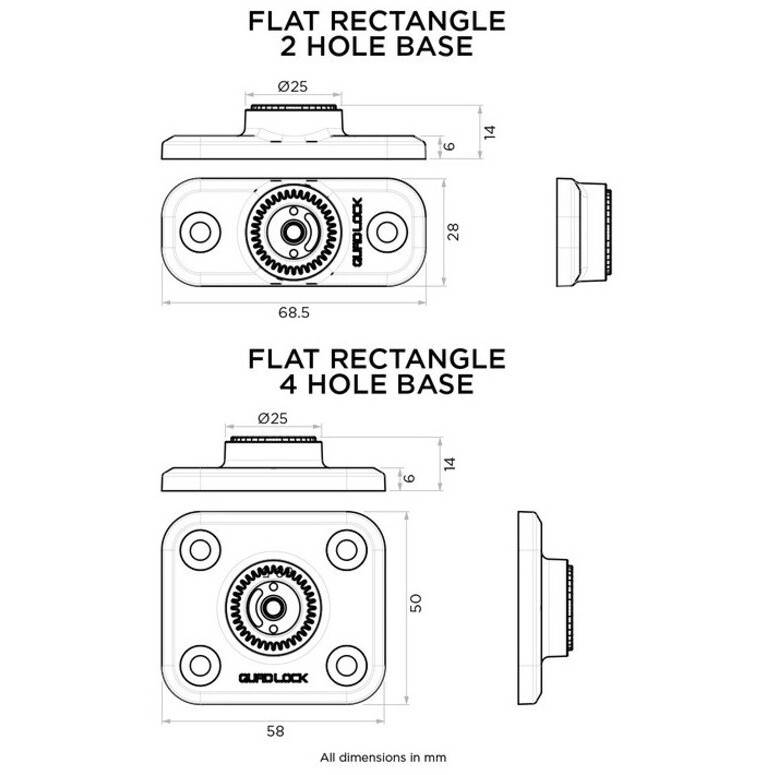

• 58mm (2.3") long x 50mm (2") wide x 14mm (0.55") high
• AMPS hole pitch: 38mm (1.5") x 30mm (1.2")

Packaging:

• 1 flat rectangular base with 4 holes
• 1 x 10mm spacer
• 1 M5x30 screw (to connect the spacer to the lever head or 360° arm))
• 1 x M5x45 screw (to attach the spacer to the weatherproof wireless charging head)
